| 制造商: | Aigtek |

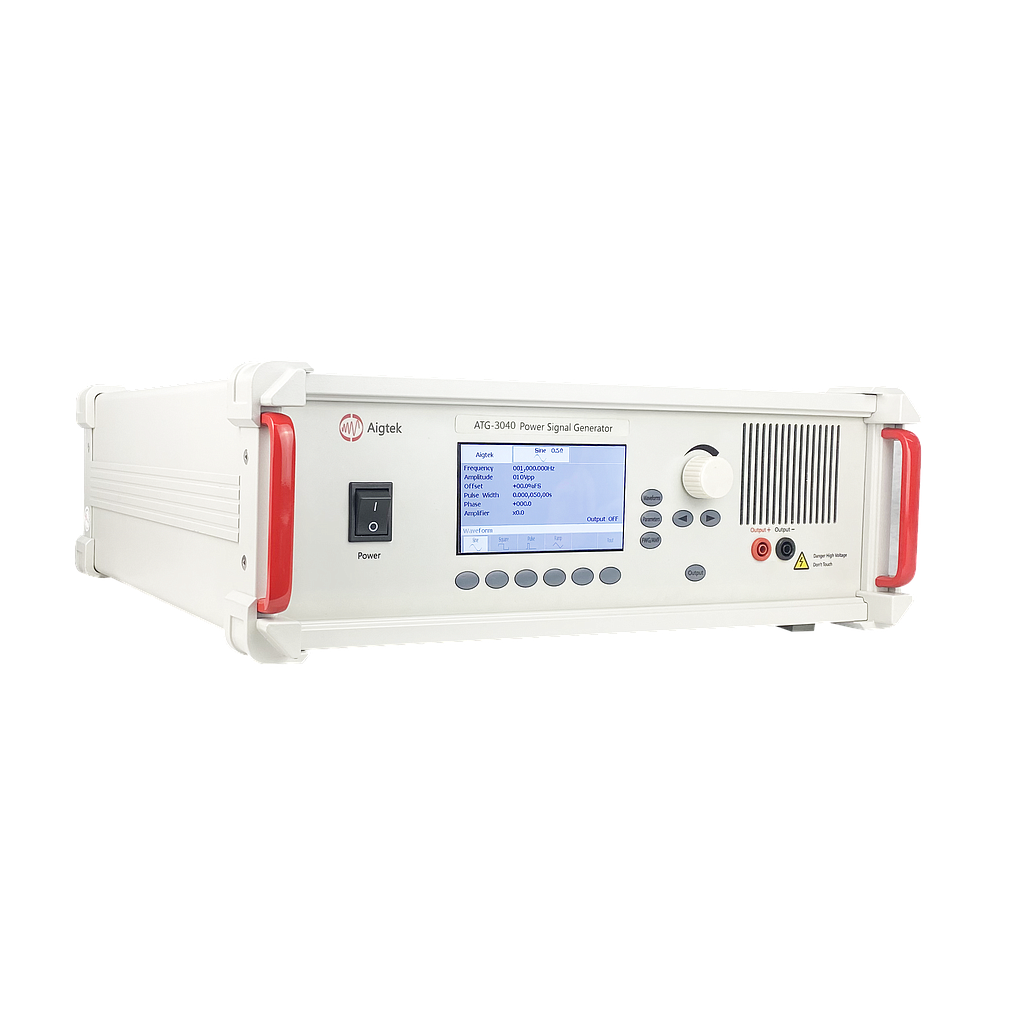

| Model: | ATG-3040 |
Bandwidth (-3dB): DC~100kHz
Output form: Single-end output
Maximum output voltage: 90Vp-p（±45V）
Maximum output current: 8A
Maximum output power: 360W
Voltage gain: 0~30(0.1step)
Input resistance (Rin): 50Ω / 5kΩ
Input waveform amplitude: 10Vp-pMAX
Output resistance (Rout): 0.1Ω / 50Ω customizable
Slew rate: 50V/μs
Load limit (RL): ≥5.6Ω
