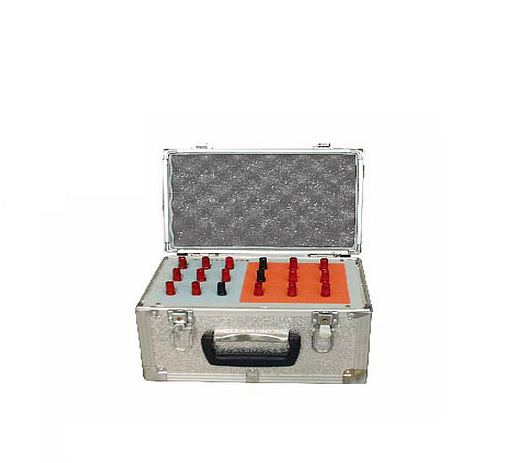

Ainuo AN200-02(F)AC / DC 负载电阻箱

Nominal resistance value/ Max power/ Max current:
+  50KΩ/ 500W/ 100mA
+  100KΩ/ 500W/ 50mA
+ 250KΩ/ 500W/ 20mA
+  500KΩ/ 500W/ 10mA
+ 1MΩ/ 500W/ 5mA
 Resistance accuracy; ±1%
Loading time: <5 minutes="" br=""> Operating Enviroment: 23ºC±5ºC,,(45~75)%RH

Detail

Product Detail

Model

Max voltage

Nominal resistance value

Max power

Max current

AN200-02

Rough adjustment

5000V

50KΩ

500W

100mA

100KΩ

500W

50mA

250KΩ

500W

20mA

500KΩ

500W

10mA

1MΩ

500W

5mA

AN200-04

1000V

0~0.47KΩ

40W

200mA

0~1KΩ

40W

100mA

0~10KΩ

40W

50mA

0~100KΩ

2W

4mA

Resistance accuracy

±1%× nominal resistance

Loading time

<5 minutes="" span="">

Operating environment

23ºC±5ºC,,(45~75)%RH

Storage environment

0℃~40℃,(5~90)%RH
