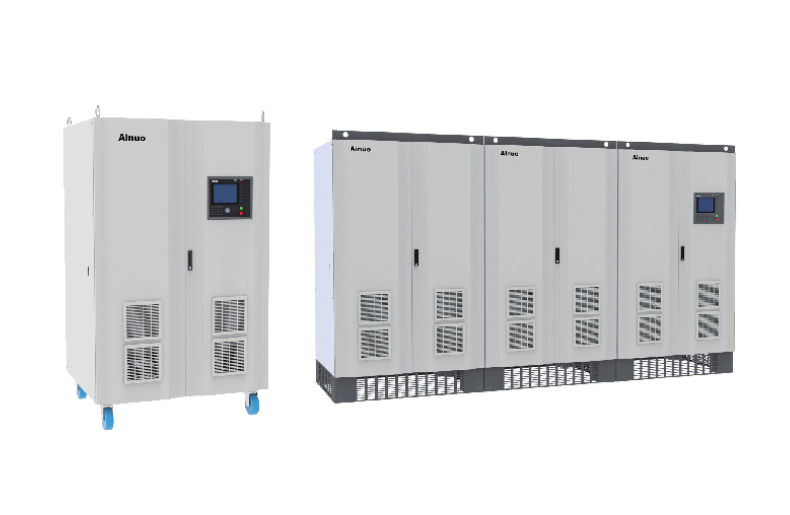

Ainuo ANFP650A(F) 可编程交流电源 (650 kVA; 984.8A)

Capacity: 650kVA

Input

• Phase: 3-phawe 4-wires + PE

• Voltage: Phase voltage: 220V±33V, line voltage: 380V±57V

• Frequency: 50/60Hz±3Hz

Output

• Phase: 3-phawe 4-wires

• Model: 3 phase standard mode, 3 phase unbalanced mode, 3 phase independent mode, parallel single phase mode

• Voltage: Phase voltage: 0 ~ 300.0V

Automatic files: (low) 0 ~ 150.0V, (high-grade) 150.1 ~ 300.0V; high-grade lock: (high-grade) 0 ~ 300.0V

• Frequency: 45.0~240.00Hz

• Output current : 220V: 984.8A

• Setting accuracy

Voltage : Resolution: 0.1V, precision: 0.4%xreading value +0.4%xfull scale value

Frequency : Resolution: 0.01Hz, precision: 0.05%

• Measurement accuracy:

Voltage: Resolution: 0.1V, precision: 0.4%xreading value +0.4%xfull scale value

Frequency: Resolution: 0.01Hz, precision: 0.05%

Electric current: Resolution: 0.1A/1A, accuracy: 0.6%xdisplay value +0.6%xrated output value

Power: Resolution: 0.1 kW/0.01 kW/0.001 kW, precision: 0.75%xreading value +0.75%xfull scale value

Frequency stability: ≤0.02%

Voltage distortion: Linear load: THD < 3%

Transient recovery time: 20ms

3 phase phase difference:

3 phase standard mode: 120° + 2°

3 phase unbalanced mode: 0° ~ 359.9°, 0.1° adjustable

Crest factor : 1.41±0.1

Power effect: ≤1%

Load effect: ≤1%

Over power:

105%<Output≤110% the output will be stopped within 15 Sec 110%<Output≤200% the output will be stopped within 5 Sec 200%<Output≤300% the output will be stopped within 2 Sec 300%<Output the output will be stopped immediately

Anti impact ability: Can withstand 3 times the rated current of 2S Protection mode: IGBT overheat, IGBT over current, Transformer overheat, Input lack voltage, Input over voltage, Output lack voltage, Output over voltage, Lack output phase, Output over load, Output short cirluit, Output over current

Efficiency: >86%

Function

• Display mode: 8 inch LCD display, resolution: 800*600

• Output waveform: Sine wave, harmonic (superposition 2~40 second harmonic)

• Programming function

Step mode: 9999 set

Stage mode: 100 stage 999999 cycle

Varations mode: 100 stage 999999 cycle

• Softstart time 0.0~99.9S

• Online adjustment function: The output voltage and frequency (45-65Hz) can be adjusted online under running status.

• Memory function: Power down memory function, memory last output mode and parameters.

• Shortcut group: 10 groups

• Line voltage crop compensation: 0.000~0.500 Ω

• Communication: RS232(standard) RS485(options) GPIB(options) Ethemet(options)

• Remote control: Remote control: Analog Control(Options)

Operating Temperature: 0 ~ 40 °C

Operating Humidity: 20 ~ 90%RH

Dimension WxHxD: 4800 (1200x4)x 1990 x 1200 mm

Weight: 4660kg
