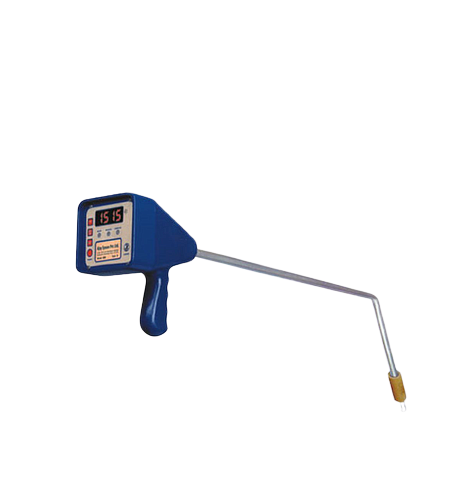

Ajay Syscon Tempstick 529 数字高温计

  • 制造商: Ajay Syscon
    Model: Tempstick 529
    • 报价要求 报价要求
  • Price (exclude tax) 32,970,500 VND
    Price (include tax) 36,267,550 VND
  • 现货: 1
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Can be connected to PC to get printout of Temperature with Date, Time, Dip Station (Furnace)
1000 readings can be stored in memory
4 digits, 7 segment LED's Height - 0.6"
Operating Temperature: 0º C to 50º C
Cabinet: Dust proof
Radio Range: 50 meters (option remote display unit)
Dimensions: 63 "x 24" x 10 "(1544mm, 588, 245mm) (L x W x H)
weight: 3kg
Range: 540 oC - 1750 oC with sensor type S (option sensor tip is consumable not include)
Overall system accuracy of ± 3°C
Power Suppy: 4Ni/Cd Battery
Response time: 3-5 seconds
Housing: Dust poor Aluminium

Option Tip not include

Details

Datasheet

Option Sensor Tip

MINI

  • THERMOCOUPLE TIP MINI 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 1500MM AS REQUIRED ACCORDING TO FURNACE CAPACITY.
  • Minitip is used especially for foundry plants
  • Connector type is male
  • Supporter type is Plastic
  • Accuracy: 1deg celcius
  • Usage: Single time used
  • ID/OD: 18MM/32MM


MARK III

  • THERMOCOUPLE TIP MARK III 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 1500MM AS REQUIRED ACCORDING TO FURNACE CAPACITY.
  • Mark III is used especially for foundry as well as Steel plants
  • Connector type is Female
  • Supporter type is Plastic
  • Accuracy: 1deg celcius
  • Usage: Single time used
  • ID/OD: 28MM/42MM


MARK VII

  • THERMOCOUPLE TIP MARK VII 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 1500MM AS REQUIRED ACCORDING TO FURNACE CAPACITY.
  • Mark VII is used especially for Steel plants
  • Connector type is Male Female
  • Supporter type is plastic / ceramic as required
  • Accuracy: 1deg celcius
  • Usage: Single time used
  • ID/OD: 18MM/32MM
  • Metal Cap: M.S / AL / CU


MINITIP REUASBLE

  • THERMOCOUPLE MINITIP REUASBLE 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 900MM AS REQUIRED ACCORDING TO FURNACE CAPACITY.
  • Minitip is used especially for foundry plants
  • Connector type is male
  • Supporter type is Plastic
  • Accuracy: 1deg celcius
  • Usage: Can be used 3-4 times in slag free condition
  • ID/OD: 18MM/32MM
  • Metal Cap: M.S


ANTISPLASH

  • THERMOCOUPLE TIP ANTISPLASH / SAFETIP / MULTI DIP 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 900MM AS REQUIRED ACCORDING TO FURNACE CAPACITY.
  • Brand Name: Safetip
  • Accuracy: 1deg celcius
  • Usage: Can be used 10-12 times in slag free condition and avoids spurting and splashing
  • ID/OD: 18MM/32MM
  • Safetip is used especially for foundry and Steel plants
  • Connector type is Mini (Male) / Mark VII (Male Female)
  • Supporter type is Plastic
  • Coating: Ceramic sleeve of 75 / 150MM as per requirement


BIG MULTI DIP

  • THERMOCOUPLE TIP BIG MULTI DIP (BMD) 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH CERAMIC SLEEVE OF 70MM.
  • Brand Name: BMD
  • Accuracy: 1deg celcius
  • Usage: Can be used 8-10 times in slag free condition, only used for 1 metric ton induction furnace and ladle furnace
  • Outer shell is Ceramic
  • Connector type is Mini (Male)
  • BMD is used especially for foundry and Steel plants


BIG MULTI DIP (BMD)

  • THERMOCOUPLE TIP BIG MULTI DIP (BMD) K TYPE WITH CERAMIC SLEEVE OF 70MM
  • Brand Name: BMD
  • Accuracy: 1deg celcius
  • Usage: Can be used 8-10 times in slag free condition, only used for small furnace upto 1 ton
  • Outer shell is Ceramic
  • Connector type is Mini (Male)
  • BMD is used especially for Non- Ferrous foundry


Technical specifications:

Type B (Platinum / Rhodium)

Suited for high temperature measurements up to 1800°C. Unusually type B thermocouples (due to the shape of their temperature / voltage curve) give the same output at 0°C and 42°C. This makes them useless below 50°C.

Type K (Chromel / Alumel)

Type K is the 'general purpose' thermocouple. It is low cost and, owing to its popularity, it is available in a wide variety of probes. Thermocouples are available in the -200°C to +1300°C range. Sensitivity is approx 41uV/°C. Use type K unless you have a good reason not to.

Type R (Platinum / Rhodium)

Suited for high temperature measurements up to 1720°C. Low sensitivity (10uV/°C) and high cost makes them unsuitable for general purpose use.

Type S (Platinum / Rhodium)

Suited for high temperature measurements up to 1720°C. Low sensitivity (10uV/vC) and high cost makes them unsuitable for general purpose use. Due to its high stability type S is used as the standard of calibration for the melting point of gold (1064.43°C).
