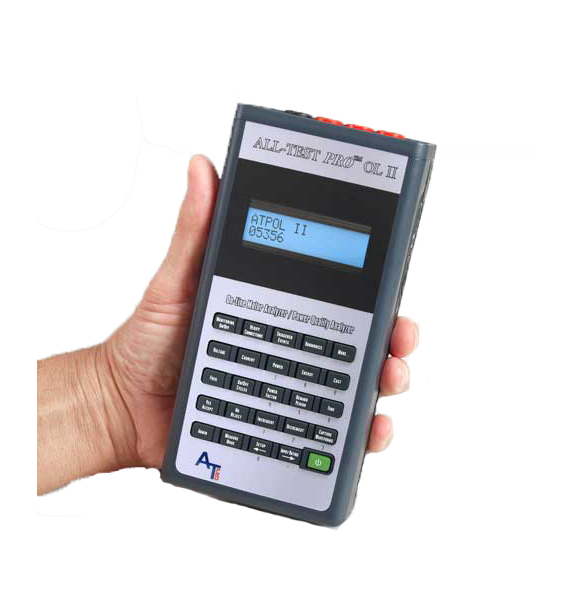

Energized testing using the handheld ALL-TEST PRO On-Line II™ instrument (ATPOL II™) has never been safer due to its small size and wireless Bluetooth* communications to your computer. Bluetooth means operating the instrument from up to 10 meters** away, potentially allowing the operator to be at a safe distance from the energized equipment.
ATPOL II™ is actually two instruments in one - a complete Motor Analyzer (ESA) and a complete Power Quality Analyzer (PQ). In ESA mode it evaluates the condition of incoming power, the control circuit, the motor itself, and the driven load and results can be trended for Condition Based Maintenance/Predictive Maintenance purposes. When in PQ mode it can be used for energy data logging, harmonic analysis, voltage and current charting, view waveforms, waveform capture of sags and swells, transient capture and event capture.
The ATPOL II™ will provide valuable information for AC induction and DC motors, generators, wound rotor motors, synchronous motors, machine tool motors, etc.
For even greater operator safety our optional ALL-SAFE PRO® connection boxes can be installed so the electrical panel need not be opened for data collection purposes. Besides better operator safety during data collection, this will also allow the user to test potentially a hundred motors each day.
