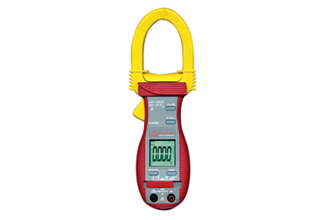

Amprobe ACD-15 TRMS-PRO Clamp meter (AC 2000A)

Specifications

AC Current: 400.0 / 2000 A

AC Current basic accuracy: +/-(1.5% Rdg + 5 LSD) @ 50 and 60Hz

AC / DC Voltage: 6.000 / 60.00 / 600V

AC / DC Voltage basic accuracy: +/-(2.0% Rdg + 5 LSD) @ DC & 50 / 60 Hz**

Resistance: 6.000 /60.00 / 600.0 kOhms 6.000 MOhms

Resistance basic accuracy: +/-(1.0% Rdg + 4 LSD) @ 60.00 to 600.0 kOhms ranges **

Frequency: 10Hz to 1kHz

Frequency basic accuracy: 0.5%+4d

Capacitance: 100.0, 1000 nF 10.00, 100.0, 2000 µF

Capacitance basic accuracy: 3.5%+5d

Non-contact voltage: 15V to 85V, 40V to 130V,60V to 210V,90V to 300V,Above 120V

True-rms: YES

Detail

Manufacturer: Amprobe

Model: ACD-15TRMS

Origin: TW

Warranty: 12 months

Display: 3-3/4 digits 4000 counts, dual LCD displays

Update rate: 3 per second nominal

Polarity: Automatic

Operating temperature: 0°C to 40°C (32°F to 104°F)

Power supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032
