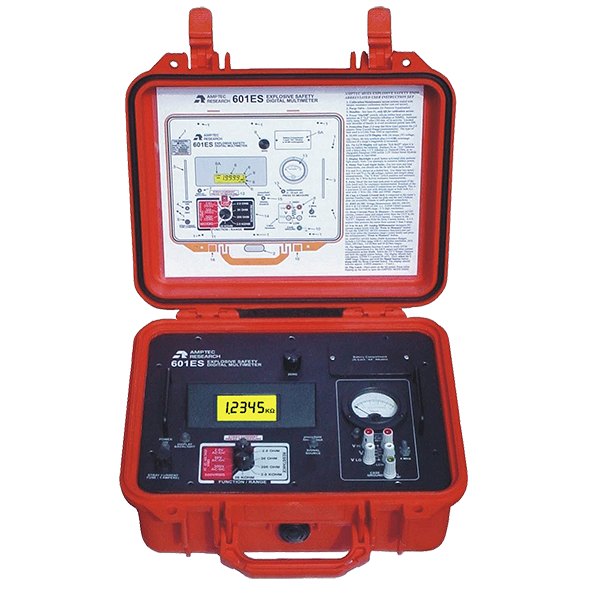

Amptec 601ES 耐候安全数字万用表 (2 Ω,20KΩ)
制造商: Amptec Model: 601ES P/N: 601ES - 报价要求
- 联系
Range: 2 Ω
Nominal Current: 5 mA
Failsafe Current: 8 mA
Resolution: 100 uΩ
Range: 20 Ω
Nominal Current: 5 mA
Failsafe Current: 8 mA
Resolution: 1 mΩ
Range: 200 Ω
Nominal Current: 0.5 mA
Failsafe Current: 1.5 mA
Resolution: 10 mΩ
Range: 2 KΩ
Nominal Current: 50 uA
Failsafe Current: 150 uA
Resolution: 100 mΩ
Range: 20 KΩ
Nominal Current: 5 uA
Failsafe Current: 15 uA
Resolution: 1 Ω
Accuracy: 2 V to 200 V AC/DC: ± 0.5% of range
Accuracy: 600 V AC/DC: ± 1% of reading range
Accuracy: 2 A AC/DC: ± 0.5% of reading range
Accuracy: 2 Ω to 20 Ω: ± .05% of (reading + range)
Display: 4 1/2 digit LED
Terminals: 4-wire Kelvin
Storage Temperature Range: -20 °C to 70 °C
Operating Temperature Range: 0 °C ± 50 °C
Dimensions: 9.5″ x 11″ x 5″
Weight: 8 lbs.
Power: 4 ea AA batteries
Max. Input Voltage: 650 VDC
Open Circuit: 1.6 VDC
Max. Failsafe Current: 8 mA
Overload: Display flashes “>>>OR”
Update: 300 ms.
