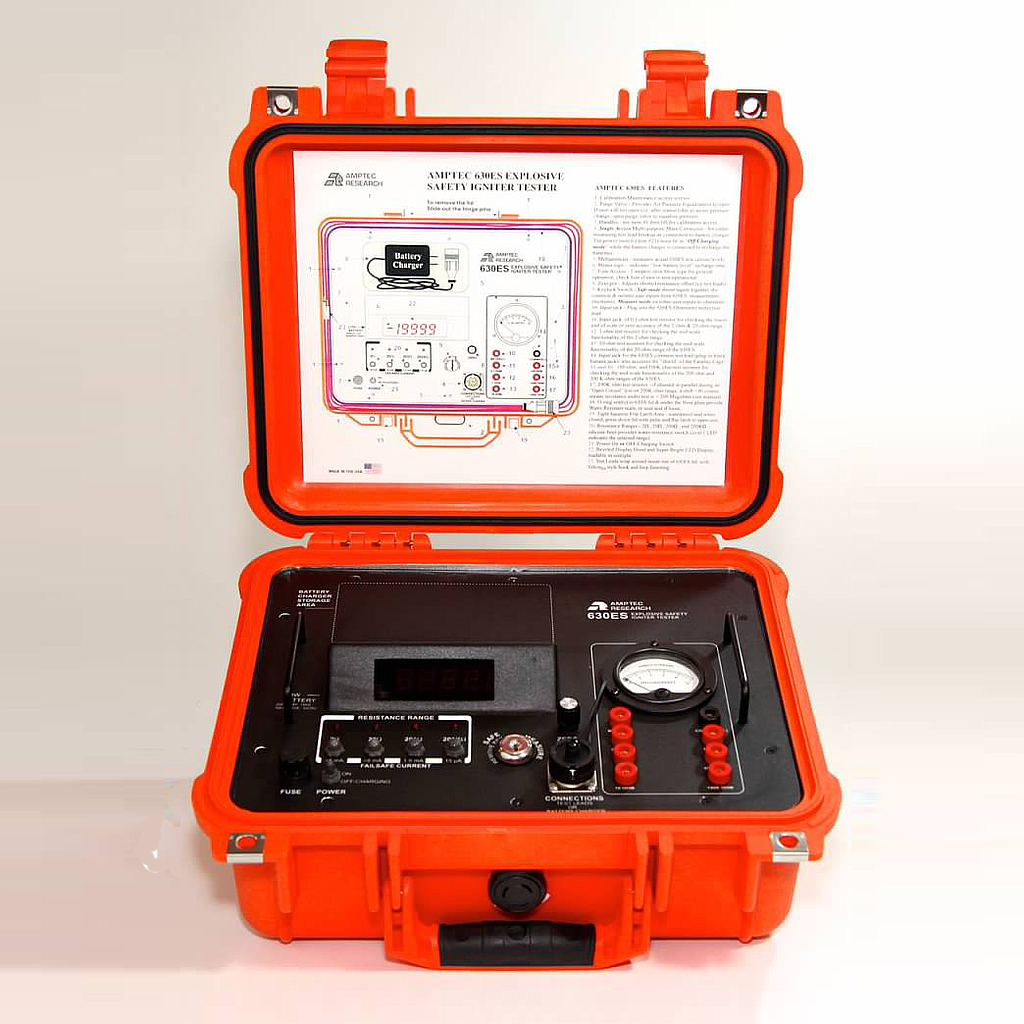

Amptec 630ES 坚固耐用的中量程数字故障保护欧姆表 (2 Ω,200KΩ)
制造商: Amptec Model: 630ES P/N: 630ES - 报价要求
- 联系
Range: 2 Ω
Nominal Current: 5 mA
Failsafe Current: 8 mA
Resolution: 100 uΩ
Accuracy: ± .02% of reading & ± .05% of range
Range: 20 Ω
Nominal Current: 5 mA
Failsafe Current: 8 mA
Resolution: 1 mΩ
Accuracy: ± .02% of reading & ± .02% of range
Range: 200 Ω
Nominal Current: 50 uA
Failsafe Current: 1.5 mA
Resolution: 10 mΩ
Accuracy: ± .02% of reading & ± .02% of range
Range: 200K Ω
Nominal Current: .5 uA
Failsafe Current: 15 uA
Resolution: 10 Ω
Accuracy: ± .02% of reading & ± .02% of range
Display: 4 1/2 digit LED
Terminal: 4-wire Kelvin
Temperature Coefficient: ± .002% per 1°C
Operating Temperature Range: 0° to 50° C
Dimensions: 11.5″ x 13.5″ x 6″
Weight: 12 lbs.
Power: 4 ea rechargeable 5AH NICAD batteries
Max. Input Voltage: 250 VDC
Open Circuit: 1.6 VDC
Max Failsafe Current: 8 mA
