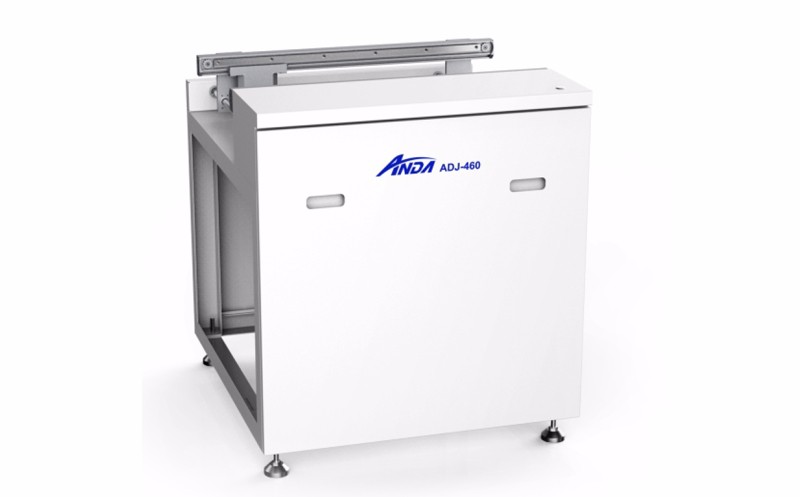

Anda ADJ 460 Automatic Machine Load/Unload

Application range:

The fields of application involve SMT coating production line, dispensing production line and non-standard production line.

Product features:

Integrated frame soldered by sheet metal.

The board width of passing through the station is adjusted arbitrarily from 50 to 460mm.

Equipment length specification 0.5m,0.8m optional.


Technical Parameters


  • Size: L=800  W=840  H=1110mm

  • Control system: button

  • Working height: 900±20mm

  • Conveyor length: 800mm

  • Conveyor type: edge conveyor with extended pin chain

  • PCB size: 50460mm

  • Conveyor speed: 0.35-6m/min

  • Conveyor direction: from left to right

  • Conveyor motor: JSCC governor motor +speed controller

  • Power supply: single phase 220V 50/60HZ

  • Total power: 100W
