Manufacturer: Anda - USA
Warranty: 12 months

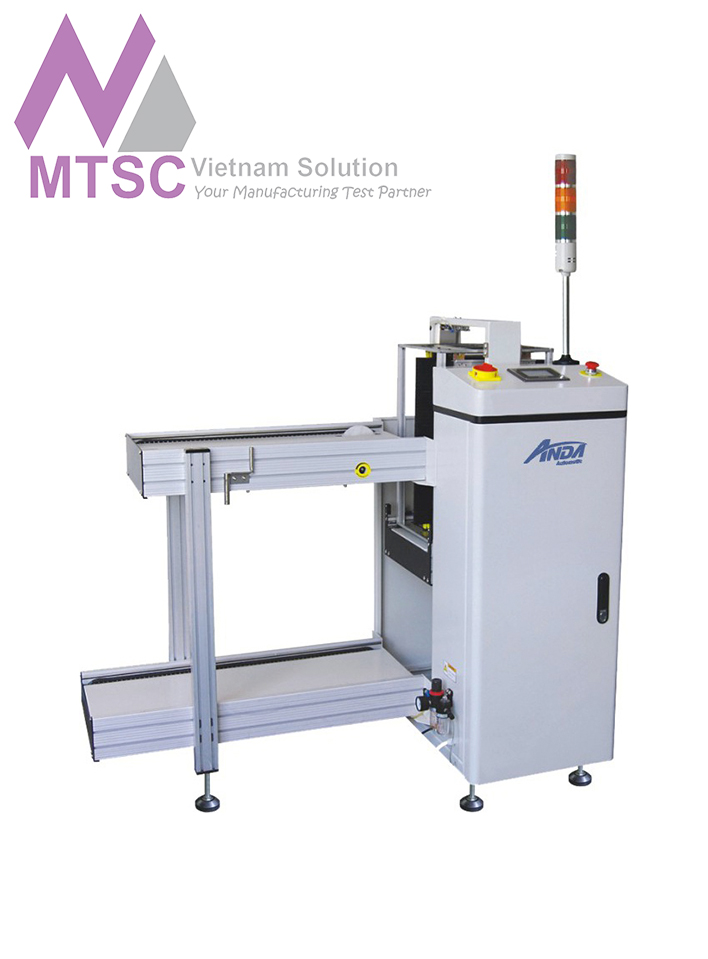

ANDA SMEMA compatible loader feeds PCBs into the Process Line from Stacks or Magazines. 460 x 535mm maximum PCB or pallet dimensions. Touchscreen control. Two models to choose from.
Control Panel: Touch Screen
Power Supply: 120 VAC, 208-230VAC / 50-60Hz
Air Pressure Supply: 5kgf/cm (70psi)
PCB size (mm): 50x50mm ~ 330x460mm
PCB Transfer Direction: L-R or R-L
Magazine size LxWxH (mm): 460 x 400 x 563mm
Pitches (mm): 10, 20, 30, 40mm
Working height (mm): 900+50/-20mm
Dimensions LxWxH (mm): 1630 x 845 x 1200mm
Anda Automation designs and manufactures selective conformal coating, fluid dispensing, UV/IR curing ovens, plasma treatment, conveying equipment, process lines and complete factory automation solutions for the electronics assembly industry.
Founded in 1999, Anda is a
hi-tech enterprise, with patents belonging to independent research and
development. Anda is a privately held company and integrates R&D,
production, sales and service as a leader in automation equipment manufacturing
for the electronics industry. Specializing in the production of selective
conformal coating, fluid dispensing, curing, conveying, energy-saving lead-free
solder, lead-free n2 / air reflow soldering machinery, automatic whole tin slag
reductive machines, SMT peripheral equipment, production line and industries
automatic transmission systems. We’ve been bringing innovative solutions to
these applications for over 15 years.
