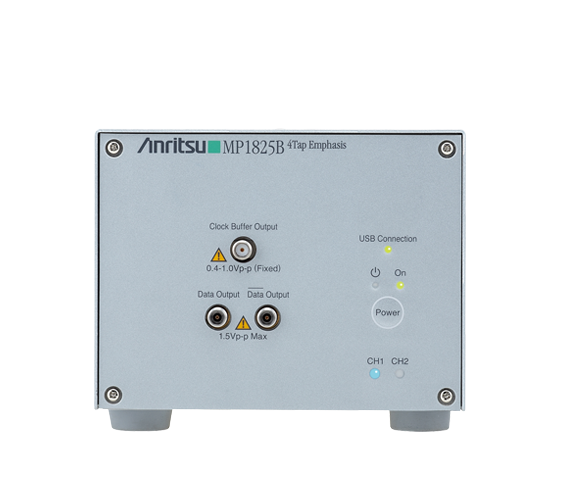

Anritsu MP1825B 4 阶预加重转换器

  • 制造商: ANRITSU
    Model: MP1825B
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Operations Manual

MP1825B 4Tap Emphasis Operation Manual

Features
  • 32.1Gbps 4-tap emphasis
  • Jitter transparent for the jitter tolerance test
  • Compact remote head to minimize cable loss and ISI
  • Can be used as a front head with any Pulse Pattern Generator
  • Compensate or inject ISI and DDPWS

Must-read documents:

Description

The MP1825B 4Tap Emphasis is a 4-tap pre-emphasis converter for bit rates up to 32.1 Gbit/s; it supports easy changes to the pre-emphasis waveform amplitude, offset, amplitude of each tap, etc., for effective evaluation of the characteristics of high-speed interfaces.



■ MP1825B 4 Tap Emphasis

 Bit Rate  1Gbit/s to 14.05Gbit/s [MP1825B-001]
1 Gbit/s to 14.1 Gbit/s [MP1825B-001, 005]
1 Gbit/s to 28.1 Gbit/s [MP1825B-002, when not using Doubler Input/Output]
8 Gbit/s to 28.1 Gbit/s [MP1825B-002, when using Doubler Input/Output]
1 Gbit/s to 32.1 Gbit/s [MP1825B-002, 006, when not using Doubler Input/Output]
 Data Output  Number of Output: 2 (Data/xData)
 Emphasis Setting  a) 2post-cursor, 1pre-cursor
b) 3post-cursor
c) 1post-cursor, 1pre-cursor
d) 2post-cursor
e) 1post-cursor
f)  Rev. 3post-cursor
 Peak Voltage  100 mVp-p to 1.5 Vp-p (Single-ended)
 Eye Amplitude  100 mVp-p to 1.0 Vp-p (Single-ended), Steps: 2 mVp-p
 Offset  -1.0 Vth to +1.0 Vth, Steps: 1 mV
 Variable Data Delay  Available. [MP1825B-003 or MP1825B-004]
 Dimensions  120(W)× 90.9(H)× 140(D)mm
