Anritsu MS46121A ShockLine™ 单端口USB 矢量网络分析仪(1端口,40 MHz - 4 GHz; 150 kHz - 6 GHz)

  • 制造商: ANRITSU
    Model: MS46121A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


1-Port VNA with frequency options from 150 kHz – 6 GHz

External PC control enables control of multiple MS46121A in parallel for excellent multisite throughput.

Very compact package allows for direct connection to the DUT.

Scalar Transmission measurements in a (1 to 1) or (1 to n) configuration.

No onboard data storage eliminates the need for data purging in secure applications.

Standard bandpass time domain with time gating grants easier and faster fault identification.

A common GUI interface within the ShockLine family reduces switching costs between models.

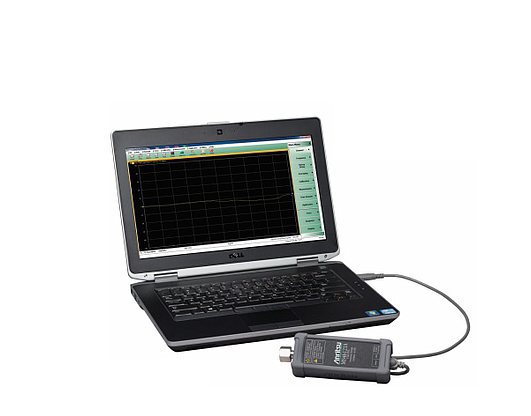

The MS46121A is a series of two PC-controlled 1-Port USB ShockLine Vector Network Analyzers with frequency ranges of 40 MHz to 4 GHz and 150 kHz to 6 GHz. The MS46121A provides performance and accuracy for your 1 port measurements in a low cost and space saving solution that is small enough to directly connect to the device under test.

All the members of the MS46121A series are aimed at RF and microwave applications in manufacturing, engineering and education. The two MS46121A options both come with 100 microsecond per point sweep speeds and a measurement accuracy of +/- 0.5 dB (-6 dB offset, typical), making them suitable for your passive device test applications.

These new very compact VNAs are externally controlled via USB from a user supplied PC. Up to 16 independent MS46121A VNAs can be operated in parallel from the same computer running ShockLine software. This enables true parallel multisite testing of 1-port devices improving throughput over traditional single VNA and switch matrix test solutions. Adding option 21, Scalar Transmission, will allow scalar measurements (magnitude only) between multiple MS46121A VNAs. The series does not have any on board memory which simplifies its use in secure applications. The combination of lower cost, small size, good performance, and parallel operation make the MS46121A series VNAs ideal for passive 1-port device test applications where performance and multisite testing are desired.


RF Passive Component Testing and Troubleshooting

Antenna Return Loss

Antenna Bandwidth

Impedance Measurements

Cable Fault Detection

Cable Phase

Cable Return Loss

Multisite Configurations Supported

Parallel testing of up to 16 DUT sites supported from one computer

Scalar Transmission Measurements can be done in parallel using 4 channels

Secure Area Applications

No data storage on unit

Secure external computer control through direct USB connection


 Frequency Options (select one frequency option only)

Option Description
MS46121A-004 40 MHz – 4 GHz, N(m) port
MS46121A-006 150 kHz — 6 GHz, N(m) port


Other Options

Option Description
MS46121A-002 Low Pass Time Domain
MS46121A-021 Scalar Transmission Measurement
