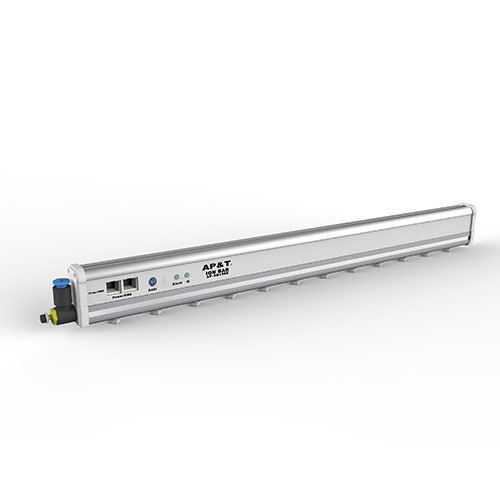

AP&T AP-AB1208 空气源交流脉冲离子棒 (±5000V)

Input Voltage: DC 24V

Input current: <600mA

Power: 10W

Working Voltage: ±5000V

Working method: Pulse AC

Emitter electrode: SUS

Discharge structure: Resistance coupling

Output frequency: 1,3,5,10,20,30,50Hz;(Factory setting:30Hz)

Duty Ratio: 10%—90%

Working range: L*W*H:{385-410(Probe distance 25mm);460-2960(Probe distance 50mm)}*300*1000mm

Working distance: 100→1000mm

Ion balance: ≤|±30V|(AVE)

Discharge speed: ≤2S

Warning indicate: Power input indicator,High Voltage indicator(Green is normal,Red is abnormal)

Status monitoring:  Series network monitoring / wireless monitoring

Airflow pressure: ≤0.6MPa

air source connector With throttle valve: Φ8-G1/8 Black

Working temperature: 0℃-50℃

Working humidity: <70%

Dimension: L*W*H:{385-410(Probe distance25mm);460-2960(Probe distance50mm)}*35*78.4mm

Bar body material: Flame retardant PVC、ABS、AL、SUS

Accessories: Flexible 180° install bracket

Power adapter: GRT-240200: DC24V 2A,Dual network port output,123*61*40.5mm(L*W*H)

Power adapter cable length: 2.5m

Certificate: CE
