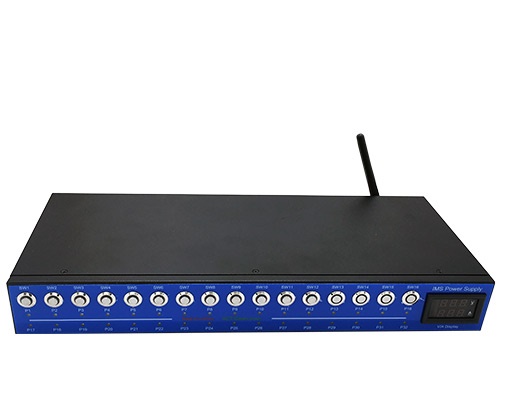

AP&T AP-DY6702 直流电源 (AC175-240V)
制造商: AP&T Model: AP-DY6702 来源: China 保障: 12 Month - 联系
Integrated Power Supply
Input voltage: AC175-240V
Output voltage: DC24V
Output current: 12.5A
Output Power: 300W
Product Size: 380*160*50
Work instructions: LED
Input indication: Digital display 0.28 Inch LED, monochrome
Product network port: 32 Port: P1-P32
Network port definition:
- 1, 2: White-orange, orange: VCC
- 3: White- blue: RS485_B
- 4: blue: RS485_A
- 5, 6, 9: White-green, green: GND, PE
- 7: White-brown: NPN-C1
- 8: brown: NPN-C2
Communication network port: DC \ PLC \ RS485 \ WAN/LAN
Illuminated switch: 16 Road：SW1-SW16
Working environment: temperature：0-50℃；humidity：30-70%
Net weight: 2500g
Gross weight: 2950g
