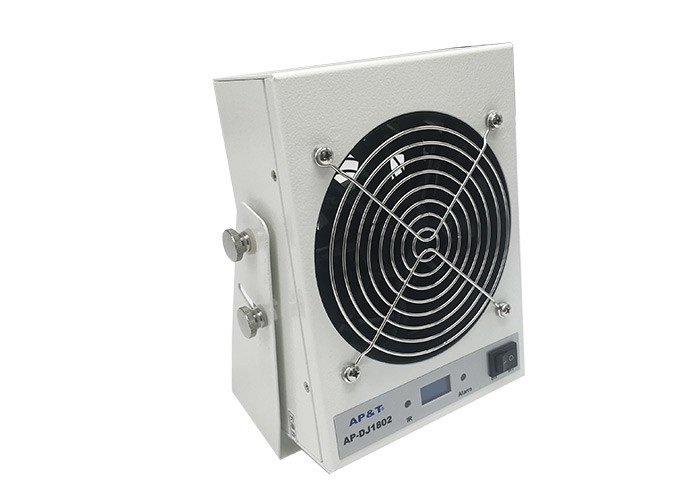

AP&T DJ1802 直流离子风机 (DC ± 5KV~± 5,5KV)

Input voltage: DC 24V (Double RJ45 interface)

Input Current: ＜0.6A

Output voltage: DC±5KV→±5.5KV

Power: ＜14.5W

Ion emit: DC

Emitter: Tungsten

Coverage: 750*300mm(L*W)

Air volume: ＜179CFM

Audio noise: ＜75dBA (150mm from the air outlet)

Ozone concentration: ≤0.05ppm (150mm from the air outlet)

Ion balance: ≤|±10V|

Discharge time: ≤1.5S (300mm from the air outlet)

Alarm indication:

1. At the moment of startup, clean operation - blue light flashes;

2. Normal work - green light (always in surveillance);

3. Fan alarm - the red light is always on;

4. Abnormal ion balance—red light flashes;

5. Blue flashing during infrared debugging

Operating temperature: 0℃-50℃

Working humidity: ＜70%RH

Dimensions: 177*81*205.5mm(L*W*H)
