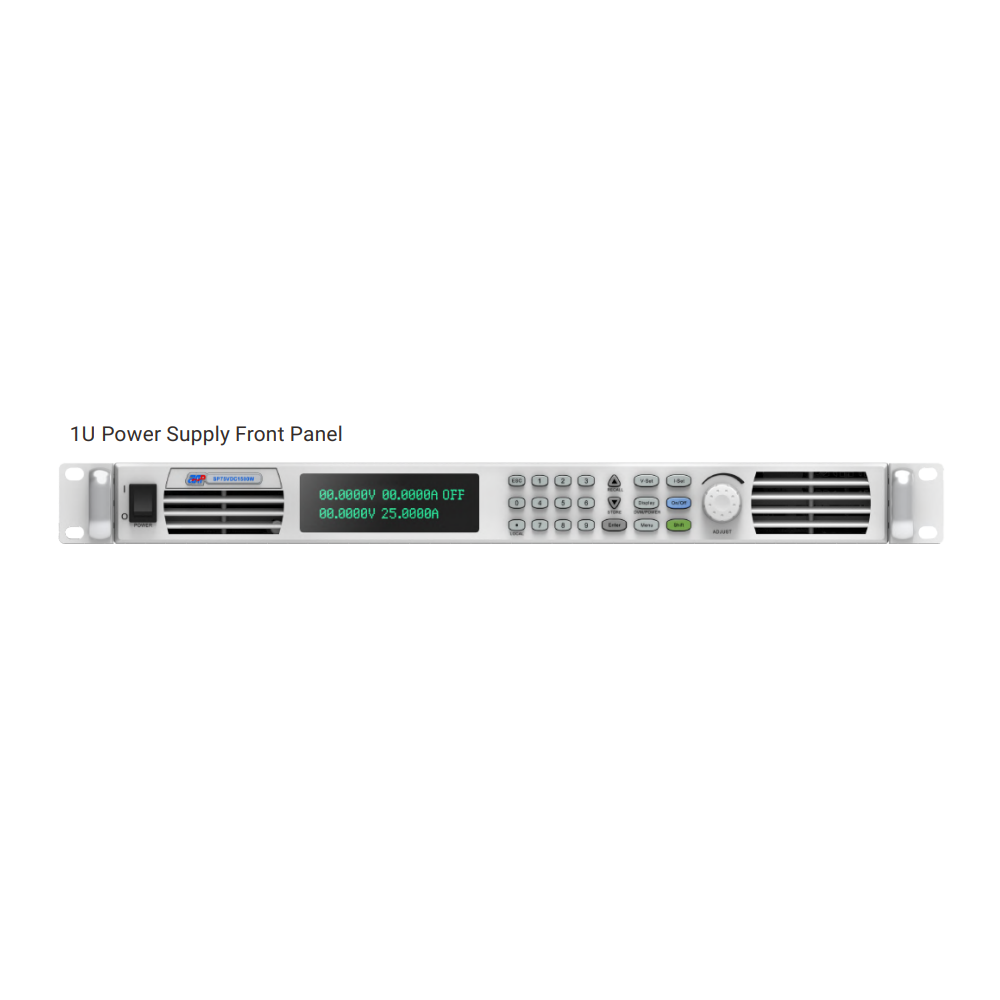

APM SP200VDC600W 高性能可编程直流电源 (200V, 8A, 600W)

Input Voltage: 90~265VAC

Input Frequency: 47~63Hz

Power Factor: >0.98

Input Power: 750VA(MAX)

Output

Rated Voltage: 200V

Rated Current: 8A

Rated Power: 600W

Size: 1U

Ripple

Voltage: 120mVp-p/40mVrms

Current: 10mA (TYP Value)

Response

Voltage increase: ≤30ms (No load), ≤30ms (Full load)

Voltage Drop: ≤600ms(No load), ≤50ms (Full load)

Certificates: CE/RoHs


Details

Datasheet


SP-1U/2U Series DC Power Supply Short Mode Function

SP-1U/2U Series DC Power Supply Timer Output Function

SP-1U/2U series DC Power Supply Quick Recall function

SP-1U/2U series DC Power Supply Counting function

SP-1U/2U Series DC Power Supply LIST waveform edit function----Pulse waveform

SP-1U/2U Series DC Power Supply LIST waveform edit function----Slope rate waveform
