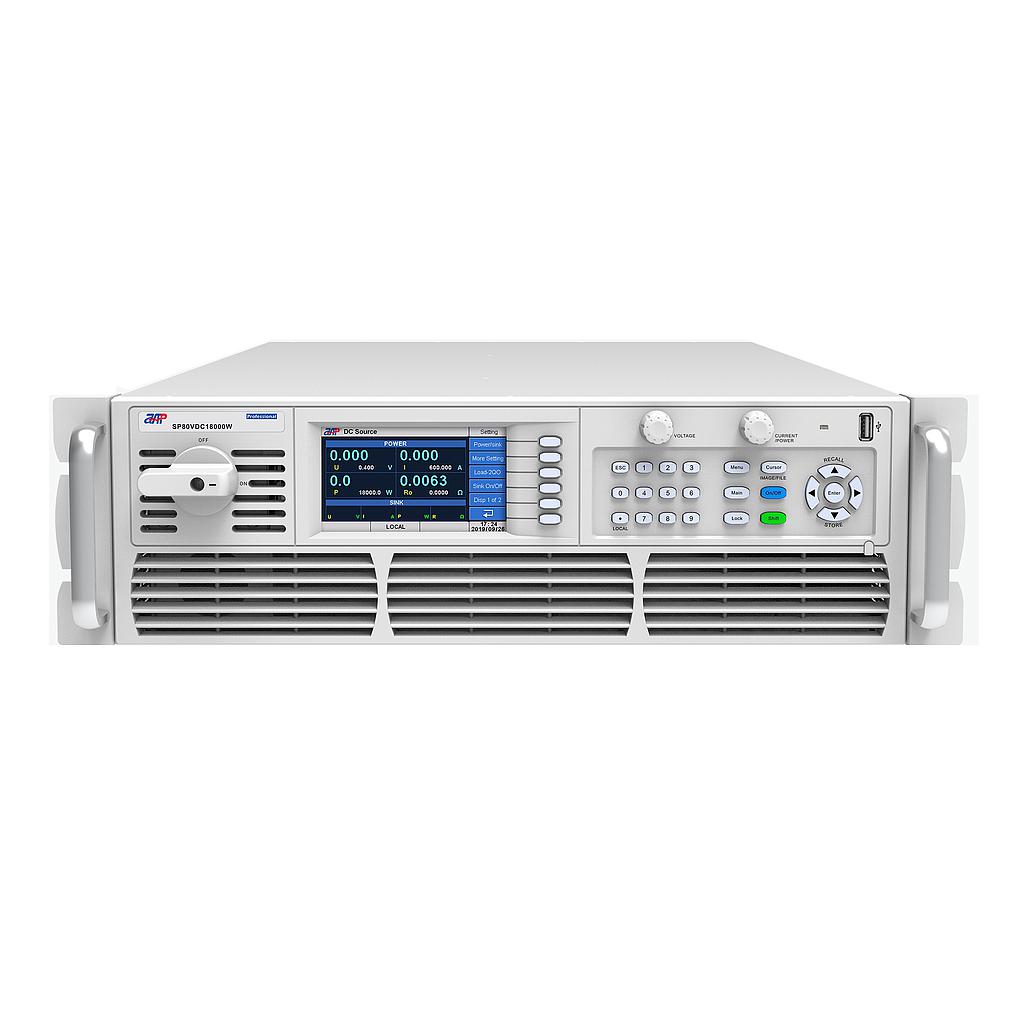

APM SP360VDC12000W 宽范围大功率可编程直流电源 (360V, 85A, 12000W)

Input Voltage: For different input voltage standard option must be specified at the time of order as they are installed at the factory prior to shipment

187~305VAC

340~480VAC

Output

Rated Voltage: 360V

Rated Current: 85A

Rated Power: 12000W

Size: 3U / 423.0x133.0x718.0mm & 38kg

Ripple

Voltage: <320mVpp, <55mVrms

Current: <43mArms

Response

Voltage increase: <15ms (No Load) <80ms (Full Load)

Voltage Drop: <800ms (No Load) <15ms (Full Load)

Internal Resistance: 0~220Ω
