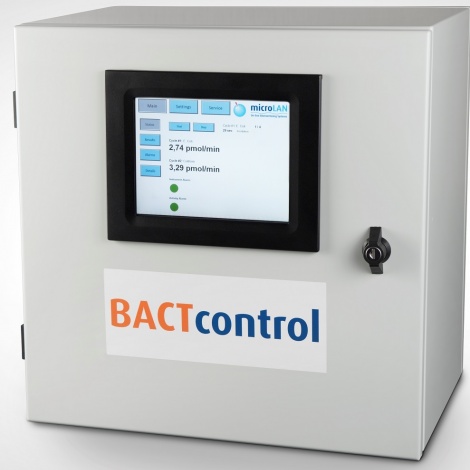

Aqualabo BACTcontrol 微生物监督机 (2ml reaction chamber)

INSTRUMENT SPECIFICATIONS:

Based on fluorescent measurement of specific enzymatic activity:

ß-Glucuronidase-> indicates E.coli activity

ß-Galactosidase-> indicates Coliform activity

Alkaline Phosphatase -> Total Activity

Communication Specifications:

Integrated PC with Windows

Graphical user interface with touchscreen

Full network capability via direct LAN

2 x USB 2.0 type A

2 x LAN 10/100/1000MB/s; RJ-45

2x digital input

2x relays output

Protocols: Modbus TCP and Modbus serial, others on request

1 x 4 - 20mA outputs

English operating system: German, French and Spanish, and others on request

Specifications Options:

Modem slot for UMTS, ISDN or analog (modem optional)

Second sample inlet / extra rinsing

Air-conditioning unit (if higher than 30°C / 86F)

Automatic cleaning:

User selectable cleaning cycles

Cleaning solution (sodium hypochlorite solution < 0,05% active) prevents fouling and enables unattended deployment for several weeks.

Technical Details:

Protection classification: IP 54

Weight: 25 KG (excluding airco)

Dimensions (h x b x d): 460 x 450 x 321 mm

Cabinet material: St. Steel

Sample pressure: max 0.05 bar

Sample connection: 4 mm ID

Sample temp.: 10 - 35°C / 50F 95F

Sample flow rate: 3 l/h

Ambient temperature: 15 - 30°C / 59F

86F, > optional air-co necessary

Power consumption (average): <100W

Power: 220V - 50 Hz or 110V - 60Hz

1 programmable pump (sample).

For specific range please check the attachment below!

Details

Datasheet

Datasheet BACTcontrol bacteria monitor


Manual

User manual BACTcontrol_Software


User manual BACTcontrol
