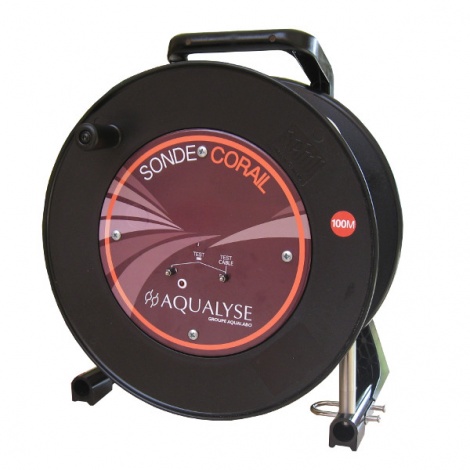

Aqualabo CORAIL probe water level measuring (30m)

TECHNICAL CHARACTERISTICS

Version:

30 m, 50 m, 100 m et 150 m

Probes:

Materials: stainless steel 316

Dimensions: diameter: 15 mm, length: 195 mm

Protection: IP68

Storage temperature: +0°C / +30°C

Ribbon:

Type: white polyethylen double wire

Ultraviolet, saltwater and contaminated water resistant

Metering: m (red), dm and cm (black)

Reel/controller:

Length: 30, 50, 100 and 150m

Hooks for fixing

Stainless ribbon guide integrated

Probe holder integrated

Battery: 2 buttons battery/autonomy: 15 000 detections or 10 years

Signal: Sonorous (buzzer) and luminous (LED)

Test: TEST A: battery / TEST B: probe + ribbon

IP55 protection

Dimensions and weight:

Dimensions

30 m and 50 m versions: 210 x 300 x 205 mm (LxHxD)

100 m and 150 m versions: 262 x 360 x 230 mm (LxHxD)

Weight:

30 m and 50 m versions: < 2,3 kg

100 m and 150 m versions: > 4.8 kg

Option:

Bottom detection probe

For specific range please check the attachment below!
