Transmitter ACTEON 5000
Software and features
Digital sensor: 2 inputs digital sensor RS485
2 analog input: In mode 0/4-20 mA or 0-10 V
2 relay input: Function of transfer on exit(release) TOR
Information of external cleaning system: swing in maintenance mode
2 analog outputs: Choice of 2 parameters programmable according to the connected sensor
Programming PID
2 digital outputs /relay: NO/NF customizable
Instruction point: setting of the measuring range
(Hysteresys / activation way) and time of activation,
Command for external cleaning system
Output alarm for defect material sensor
Digital output: Modbus RTU
Ethernet TCP IP
Data recording: Internal flash memory
Frequency recording: 1-120 mn
Recording journal of events, measure sensors.
Atmospheric pressure sensor: To compensate oxygen pression
Characteristics
Display: Backlit graphic LCD touch Screen – Size95x54 mm
Analog outputs: 0/4.00 – 20.00 mA with galvanic isolation
Charge max 250 W
Relay outputs: 6 A /250 V
Operating conditions: Temperature : -15°C to + 50 °C
Temperature of storage/transport : -15°C to + 50°C
USB port: Unloading of the recorded data
Power/ Electrical protections: 100-240 V AC/DC 50-60 Hz
- Option 9-28 V DC/DC
- Electrical protection: consistent EN61010-1 :2010
Housing
Dimensions (LxHxP): 213 x 185 x 84 mm
Material: Grey ABS
Protection rating: IP 65
Front: Antireflective polyester

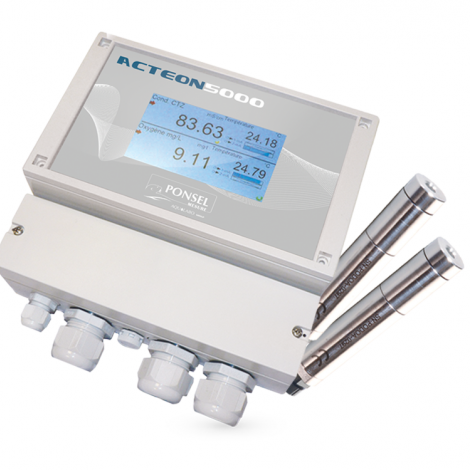

Containing:
- 1 ACTEON 5000 transmitter digital bi-sensors,
- 2 digital OPTOD sensor in TITANIUM with 7 m cable,
- 1 Operating instructions on CD.
