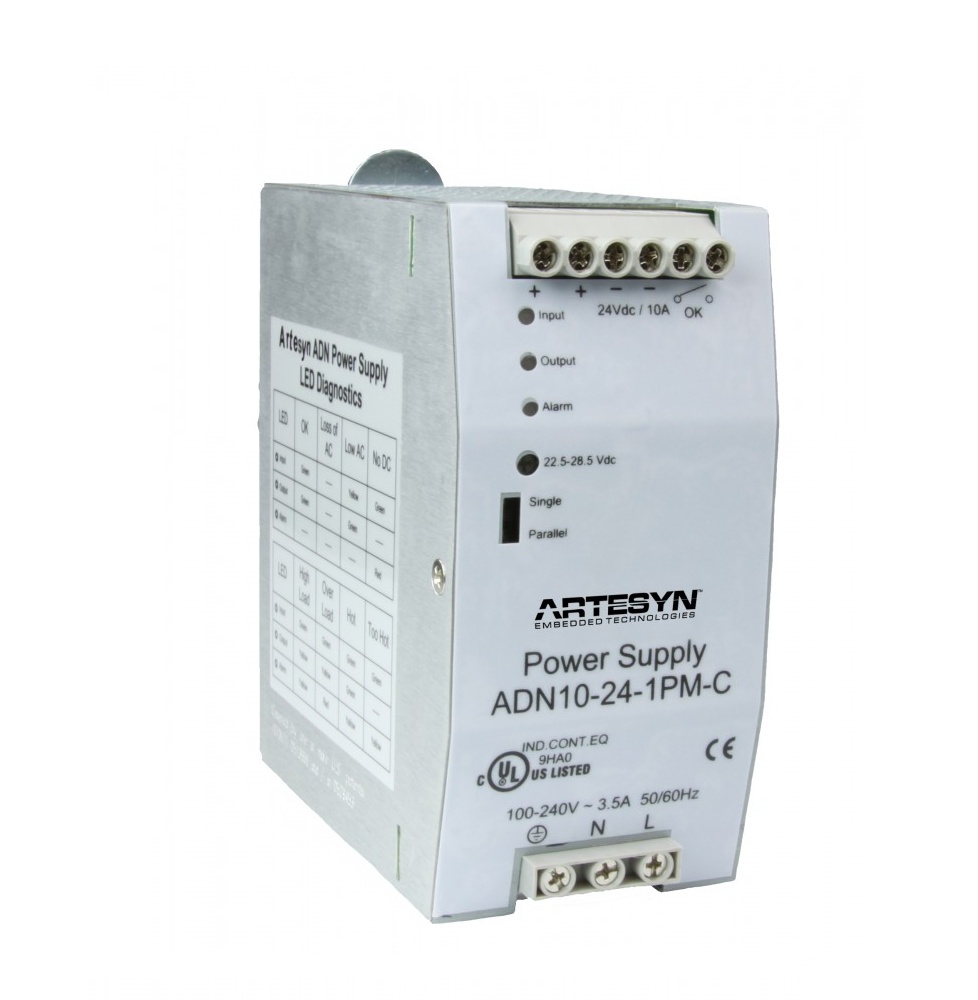

Artesyn ADN10-24-1PM-C DIN Rail Mounting Single-phase AC-DC Power Supply (240W)

Input

AC input range: Nominal: 100-240 Vac/115-230 Vac/85-264 Vac

DC input range: 90-375 Vdc

Frequency: 47-67 Hz, 400 Hz

Efficiency: > 90%

Inrush current (typical): < 15A or < 60A depending on model

PFC: Active, better than 0.92

Output

Nominal voltage:

24 Vdc (22.5-28.5 Vdc Adj): ADN5-24-1PM-C & ADN10-24-1PM-C

24 Vdc (24-28 Vdc Adj): ADN20-24-1PM-C & ADN40-24-1PM-C

Initial voltage setting: 24.5 V ± 1%

Hold-up time: > 20 ms at full load (100 Vac Input @ Tamb = +25 °C)

Voltage regulation: < ± 2% (combination line, load, time and temperature related changes)

Ripple:

< 50 mVpp: ADN5-24-1PM-C & ADN10-24-1PM-C

< 100 mVpp: ADN20-24-1PM-C & ADN40-24-1PM-C

Back EMF immunity: < 35 Vdc

Power Boost™ 1.5 x Nominal current for 2 or 4 seconds depending on model

Short circuit current 1.5 x Nominal current at near zero volts at short circuit condition

Parallel operation: Switch selectable single unit or parallel unit operation. Units will not be damaged by parallel operation (regardless of switch position setting)

Ouput noise suppression: Radiated EMI values below EN61000-6-2

Overvoltage protection: > 30.5 Vdc but < 33 Vdc, auto recovery

Line and load regulation: < 0.5%

Time and temperature drift: < 1%

Environmental Specifications

Storage temperature: -40°C to + 85°C; All models

Operating temperature:

From -25°C to 70°C. Derate starting at 60 °C; All models

Up to 50% load permissable with horizontal or on top mounting orientation

Ordering Information

Power: 240 W

Input Voltage : 85-264 Vac; 90-375 Vdc

Weight: 1.98 lbs (900 g)

Current: 10 A @ 24 Vdc

Case Type: Metal with mounting clip

MTBF Demonstrated at 40 °C: 550.000 hours
