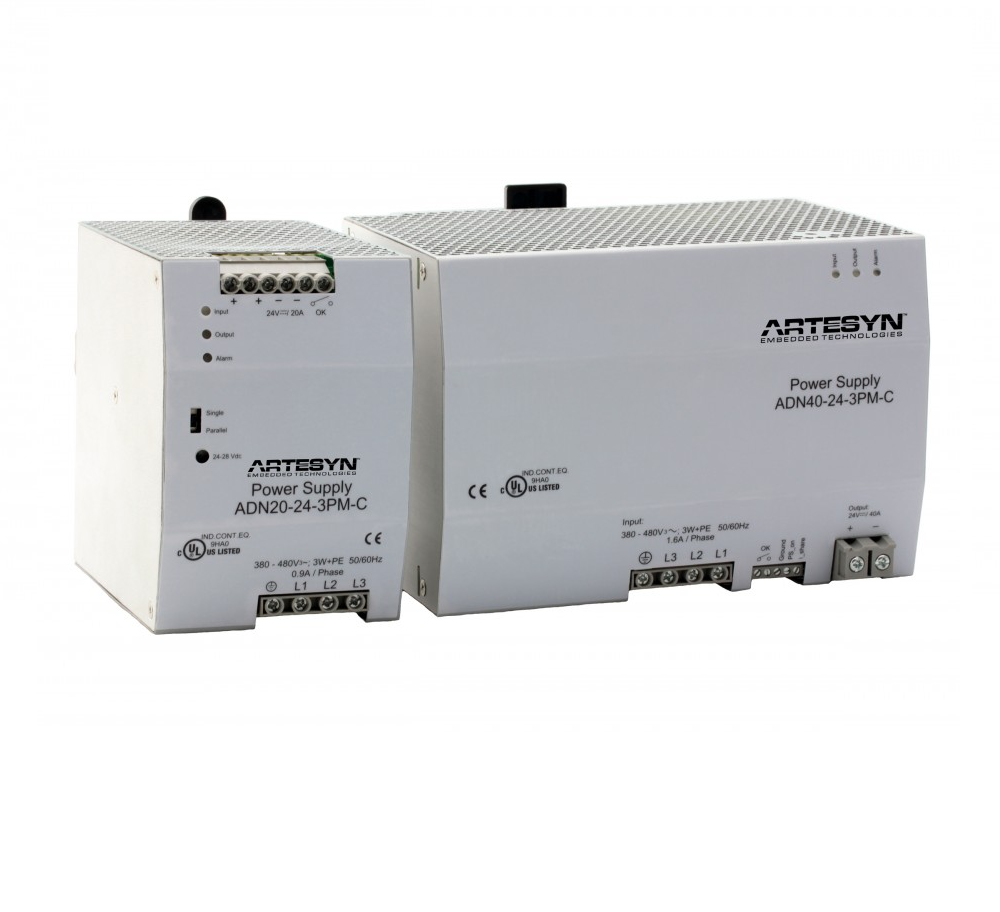

Artesyn ADN5-24-3PM-C DIN Rail Mounting Three-phase AC-DC Power Supply (120W)

Input

Nominal voltage: 380 - 480 Vac

AC input range: 320 - 540 Vac

DC input range: 450 - 760 Vdc for ADN5, ADN10 & ADN20

Frequency: 50 - 60 Hz

Efficiency: Up to 94%

PFC: Active power factor correction for ADN20 & ADN40; meet EN61000-3-2 Class A

Phase input: ADN5 and ADN10 will operate with single phase input at 100% load Derate to 75% and 50% for ADN20 and ADN40 respectively under loss of 1 phase; Units will shut down if thermal threshold is exceeded under this condition

Output

Nominal voltage: 24 V (24.0 - 28.0 Vdc Adj.)

Hold-up time: > 20 ms for ADN5, ADN10 & ADN20; > 15 ms for ADN40

Voltage regulation: < ±2% overall

Ripple: < 100 mVpp

Current limit: PowerBoost™

Peak current:

2x nominal current for < 2 sec for ADN5 & ADN10;

1.5x nominal current for 4 seconds minimum while holding voltage > 20 Vdc for ADN20 & ADN40

Parallel operation: Single or parallel operation selectable via front switch. For redundant operation use of external diode module is preferred; ADN40 uses active paralleling

Power back immunity: < 35 V

Overvoltage protection: > 30.5 Vdc, but < 33 Vdc, auto recovery

Environmental Specifications

Storage/shipment: -40°C to + 85°C

Operation (convection):

Full Load -25°C to + 60°C derate to 50% load at +70°C

Up to 50% load permissable with horizontal or on top mounting orientation

Humidity: < 90% RH, non-condensingl IEC 60068-2-2, 68-2-3

Altitude Operating: 0 to 10,000 feet (0 to 3000 m) above sea level

Ordering Information

Power: 120 W

Input Voltage: 320 - 540 Vac; 450 - 760 Vdc

Weight: 1.15 lbs (520 g)

Current: 5 A @ 24 Vdc

Efficiency: 85.0%

Case Type: Metal

MTBF: > 500.000 hours Nominal voltage, full load, Tamb=25°C
