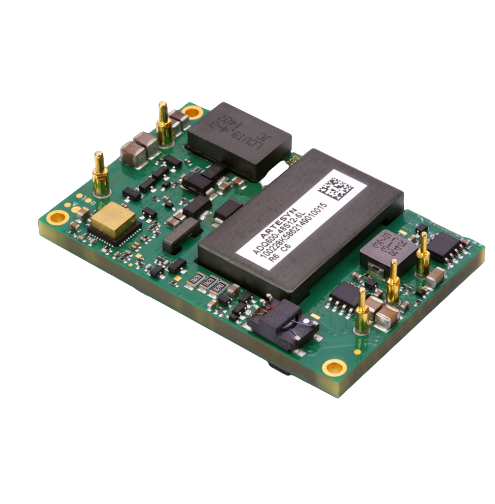

Artesyn ADQ600-48S12-6L Quarter-Brick Isolated DC-DC Converter (12V; 50A; 600W)

Input voltage (continuous): 63 V

Input voltage (non-continuous): 80 V 100 mSec

Input range: 40 - 60 VDC

Efficiency: 95.6% @ 12Vo

Output voltage: 12 V

Output current: 50 A

Voltage tolerance: +/-1%

Line regulation: 0.1%

Load regulation: 3.3%

Noise/ripple: 200 mV

I/O isolation: 1500 VDC min.

Power: 600W

Operating ambient temperature range: -40° C to +85 °C

Storage temperature: -55 °C to +125 °C

Humidity: 5% to 95% (non-condensing)
