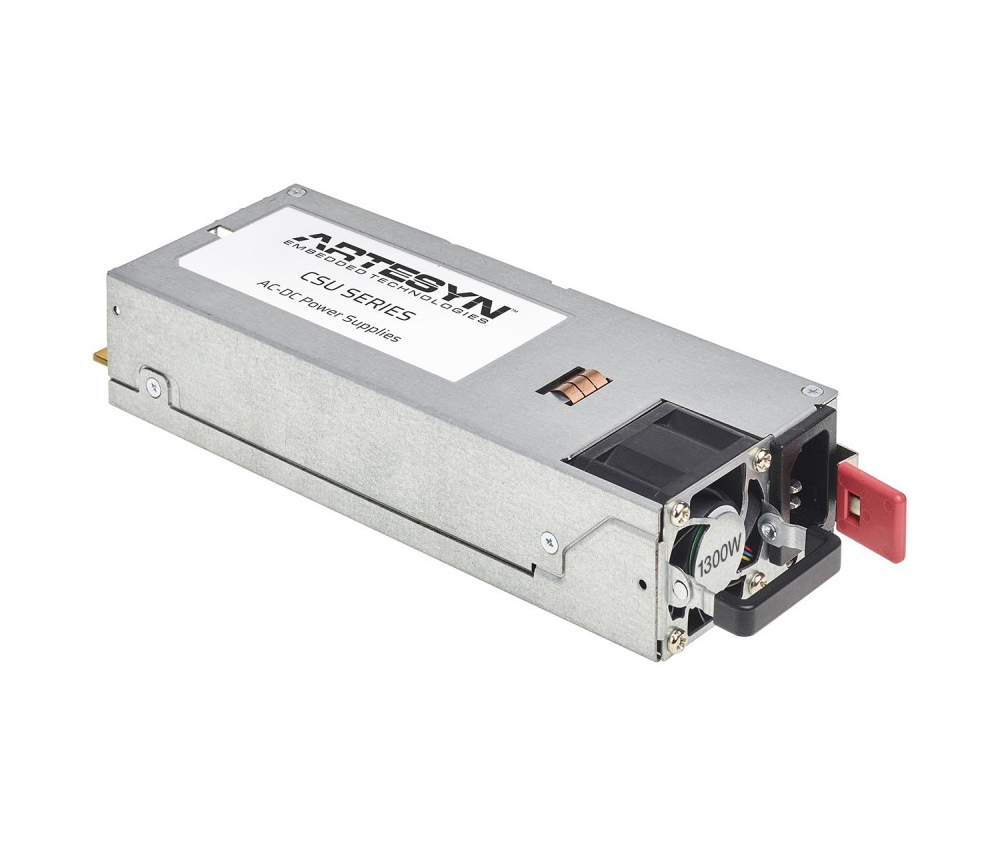

Artesyn CSU1300AP-3-600 Front-end Power Supply (12.2V/108.3A;12V/3A; 1300W)

Input range: 90 - 264 Vac / 180 - 300 Vdc

Frequency:  47 Hz to 63 Hz

Max input current: 8.5 Arms @ 180 Vac; 12.5 Arms @ 100 Vac

Main DC Output:

Nominal setting (12 V / 1 A, 12 VSB / 0.1 A): MIN: 12.1/ NOM: 12.2 / MAX: 12.3

Total output regulation range:  MIN: 11.8 V/ MAX: 12.6 V

Output current: MIN: 1/ Hi line: 108.3 A ; Lo line: 83.3 A

Standby DC Output:

Nominal setting (12 V / 1 A, 12 VSB / 0.1 A): MIN: 11.9/ NOM: 12.0/ MAX: 12.1

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0 A/ MAX: 3 A

Operating temperature: 0 to 55 °C

Operating humidity: +5% to +90% non-condensing

Storage temperature: -40 °C to +85 °C, non-condensing

Storage humidity: +5% to +95% non-condensing

Airflow: Normal fan

Nominal Output Voltage: 12.2 Vdc

Regulation Band: 11.6 - 12.6 Vdc

Minimum Current: 1 A

Maximum Current: Hi line: 108.3 A; Lo line: 83.3 A

Output Ripple P/P: 120 mV

Standby: 12.0 V @ 3 A
