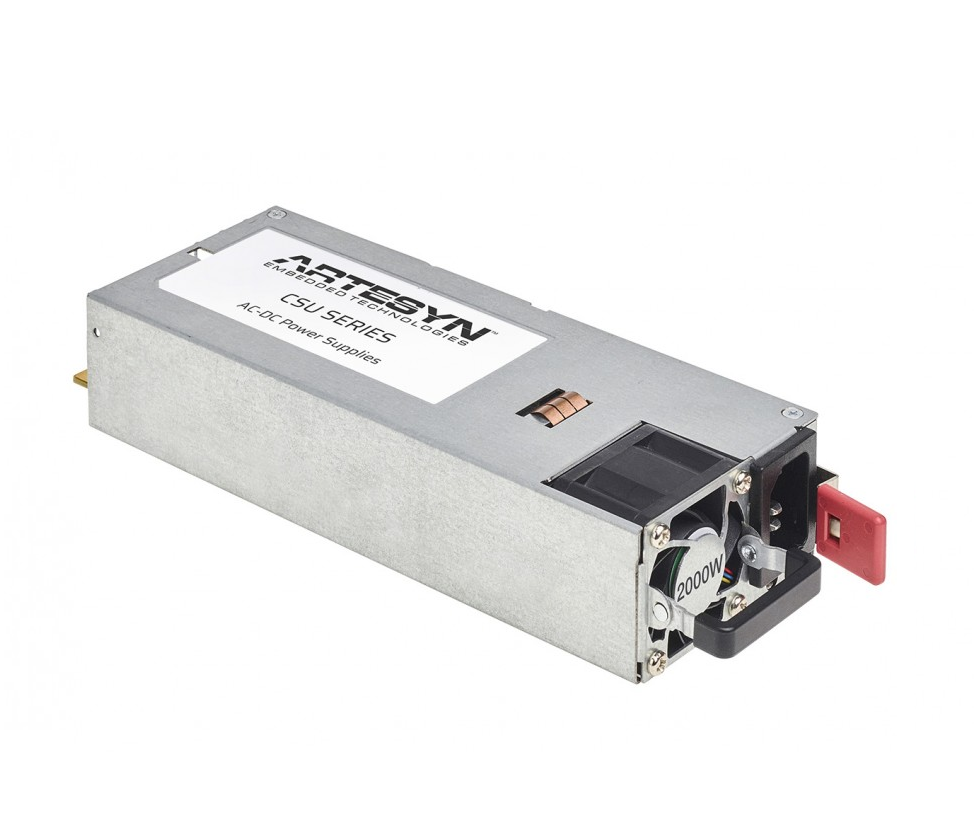

Artesyn CSU2000AP-3 Front-end Power Supply (12V/166.7A; 12V/3A; 2000W)

Input range: 220-264 Vac: 2000 W; 200-220 Vac: 1780 W; 220-320 Vdc

Frequency: 47 Hz to 63 Hz

Max input current: 10 Arms @ 200 Vac/220 Vac

Main DC Output

Nominal setting (12 V / 1 A, 12 VSB / 0.1 A): MIN: 11.9/NOM: 12.0/ MAX: 12.1

Total output regulation range:  MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 1/ MAX: 166.7 A

Standby DC Output

Nominal setting: MIN: 11.7/ NOM: 12.0/ MAX: 12.3

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0 A/ MAX: 3 A

Operating temperature: 0 to 50 °C

Operating humidity: +5% to +95% non-condensing

Storage temperature: -40 °C to +70 °C, non-condensing

Storage humidity: +5% to +95% non-condensing

Airflow: Normal fan

Minimum Current: 1 A

Maximum Current: 166.7 A

Output Ripple P/P : 120 mV

Standby: 12.0 V @ 3 A
