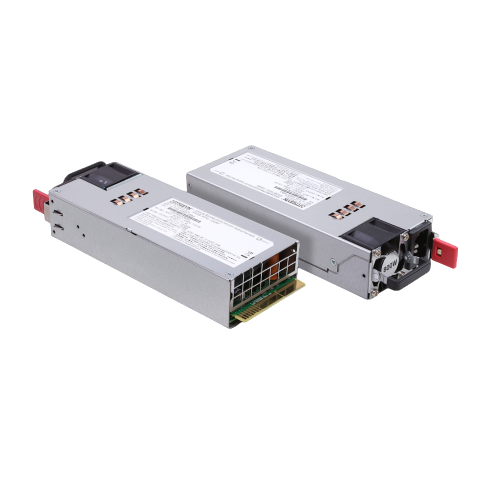

Artesyn CSU800AP-3-601 Front-end Power Supply (12V/66.7A; 12VSB/3A; 800W)

Input

Input range:  90 - 264 Vac / 164 - 320 Vdc

Frequency: 47 Hz to 63 Hz

Max input current: 11.7 Arms @ 90 Vac

Output

Main DC Output:

Nominal setting (12 V / 1 A, 12 VSB / 0.1 A): MIN: 11.9/ NOM: 12.0/ MAX: 12.1

Total output regulation range: MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 1/ MAX: 66.7 A

Standby DC Output:

Nominal setting (12 V / 1 A, 12 VSB / 0.1 A): MIN: 11.9/ NOM: 12.0/ MAX: 12.1

Total output regulation range: MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 0/ MAX: 3 A

Operating temperature: 0 to 55 °C, the maximum operating temperature (55 °C) is to be derated by 1 °C per 300 m above 2000 m

Operating humidity: +5% to +85% non-condensing

Storage temperature: -40 °C to +70 °C, non-condensing

Storage humidity: +5% to +95% non-condensing

Airflow: Reverse fan

Nominal  Output Voltage: 12.0 Vdc

Set Point: 11.9 - 12.1 Vdc

Regulation Band: 11.4 - 12.6 Vdc

Minimum Current: 1 A

Maximum Current: 66.7 A

Output Ripple P/P: 120 mV

Standby: 12.0 V @ 3 A

Detail

Datasheet
