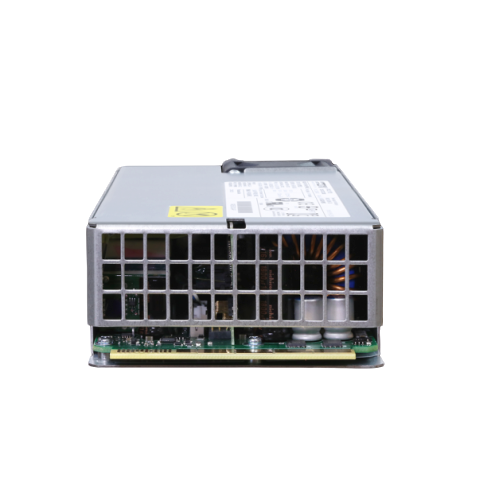

Artesyn CSV1600BP-3 Front-end Power Supply (12.2V/131.2A; 12V/3A; 1600W)

Input range: 180 - 264 Vac: 1600 W

Frequency: 47 Hz to 63 Hz

Max input current: 8.7 A @ 200 Vac

Main DC Output

Nominal setting: MIN: -0.20% /NOM: 12.2/ MAX: 0.20%

Total output regulation range:  MIN: 11.6V / MAX: 12.8 V

Output current: MIN: 1.0 A/ MAX: 131.2 A

Standby DC Output

Nominal setting: MIN: -3.5%/ NOM: 12.0/ MAX: +3.5%

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0.0 A/ MAX: 2.5 A

Operating temperature: 5 to 50 °C

Operating relative humidity: +8% to 93%, non-condensing

Nominal Main Output: 12.2 V @ 131.2 A

Standby Output: 12 V @ 3.0 A

Airflow Direction: Standard (forward)

Detail

Datasheet
