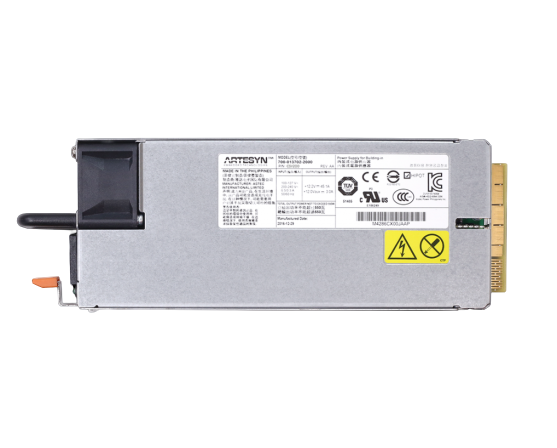

Artesyn CSV2000BP-3 前端电源 (12.2V/163.9A; 12Vsb/3A; 2000W)

Input range: 180 - 264 Vac1 : 2000 W; 198 - 264 Vac: 2000 W

Frequency: 47 Hz to 63 Hz

Max input current: 11.0 A or 10 A

Main DC Output

Nominal setting: MIN: -0.20% /NOM: 12.2/ MAX: 0.20%

Total output regulation range:  MIN: 11.59V / MAX: 12.81 V

Output current: MIN: 1.0 A/ MAX: 163.9 A

Standby DC Output

Nominal setting: MIN: -3.5%/ NOM: 12.0/ MAX: +3.5%

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0.5 A/ MAX: 3.0 A

Operating temperature: 5 to 50 °C

Operating relative humidity: +8% to 93%, non-condensing

Nominal Main Output: 12.2 V @ 163.9 A

Standby Output: 12 V @ 3.0 A

Airflow Direction: Standard (forward)


Detail

Datasheet
