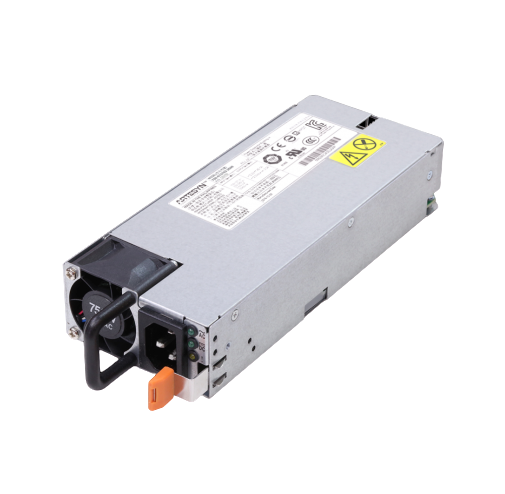

Artesyn CSV750BP-3 前端电源 (12.2V/61.5A; 12V/2.5A; 750W)

Input range: 90 - 264 Vac: 750 W

Frequency: 47 Hz to 63 Hz

Max input current: 8.6 A @ 100 Vac

Main DC Output

Nominal setting: MIN: -0.20% /NOM: 12.2/ MAX: 0.20%

Total output regulation range:  MIN: 11.59V / MAX: 12.81 V

Output current: MIN: 1.0 A/ MAX: 61.5 A

Standby DC Output

Nominal setting: MIN: -3.5%/ NOM: 12.0/ MAX: +3.5%

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0.0 A/ MAX: 2.5 A

Operating temperature: 5 to 50 °C

Operating relative humidity: +8% to 93%, non-condensing

Nominal Main Output: 12.2 V @ 61.5 A

Standby Output: 12 V @ 2.5 A

Airflow Direction: Standard (forward)

Detail

Datasheet
