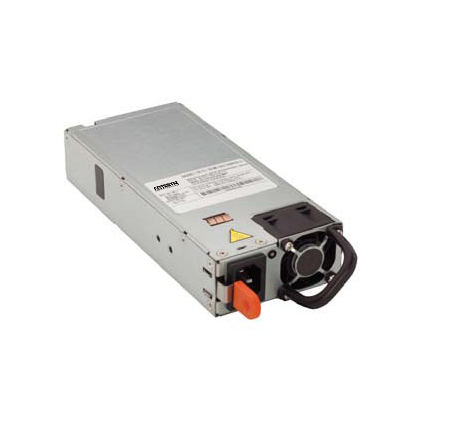

Artesyn DS1600SPE-3-001 Front-end Power Supply (12V/133.3A; 12V/3.5A; 1600W)

Nominal Main Output: 12 V @ 133.3 A

Standby Output: 12 V @ 3.5 A

Airflow Direction: Reverse

Input voltage range: 180 to 264 Vac: 1600 W; 90 to 140 Vac: 800 W

Frequency: 47 Hz to 63 Hz

Max input current: 10.8 Arms

Main DC Output

Nominal setting: MIN: -0.20%/NOM: 12/ MAX:  0.20%

Total output regulation range:  MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 2 A/ MAX: 133.33 A

Standby DC Output

Nominal setting: MIN: -3%/ NOM: 12/ MAX: 3%

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0.1 A/ MAX: 3.5 A

Functions: Overcurrent protection; Overvoltage protection; Undervoltage protection

Operating temperature:

Ds1600SPE-3: 1600W from 0 to 50 °C, can operate up to 65°C at 2% derated power for every °C above 50°C

DS1600SPE-3-001: 1600W from 0 to 40°C, can operate up to 60°C at 1% derated power for every °C above 40°C

Operating relative humidity 5% to 95% non-condensing
