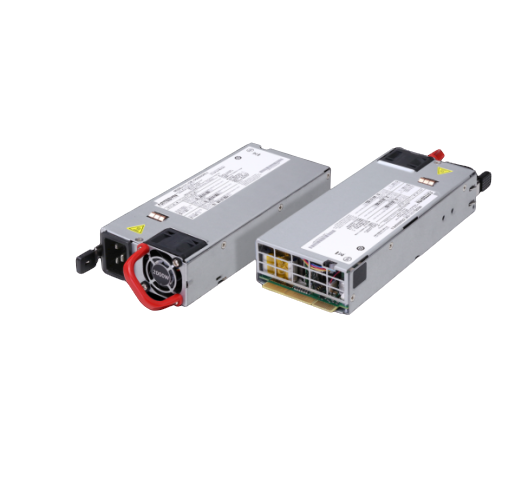

Artesyn DS2400SPE-3 前端电源 (12.2V/163.9A; 12Vsb/3.5A; 2400W)

Input voltage range: 180 to 264 Vac: 2400 W; 90 to 140 Vac: 1400 W

Frequency: 47 Hz to 63 Hz

Max input current 11.5 Arms at 100/200 Vac

Main DC Output

Nominal setting: MIN: 12.175 /NOM: 12.2/ MAX: 12.225

Total output regulation range:  MIN: 11.6 V/ MAX: 12.9 V

Output current: MIN: 8.0 A (minimum starting load for a 20% transient step)/ MAX: 196.7 A at high line; 114.75 A at low line

Standby DC Output

Nominal setting: MIN: 11.95/ NOM: 12/ MAX: 12.05

Total output regulation range: MIN: 11.4 V/  MAX: 12.6 V

Output current: MIN: 0.0 A/ MAX: 3.5 A

Operating temperature:

Forward air: 0 to 50 °C, allowable up to 60 °C at 1800 W

Reverse air: 0 to 40 °C, allowable up to 50 °C at 1700 W

Operating relative humidity: Up to 95% non-condensing

Nominal Main Output: 12.2 V @ 163.9 A

Standby Output: 12 V @ 3.5 A

Airflow Direction: Standard (forward)
