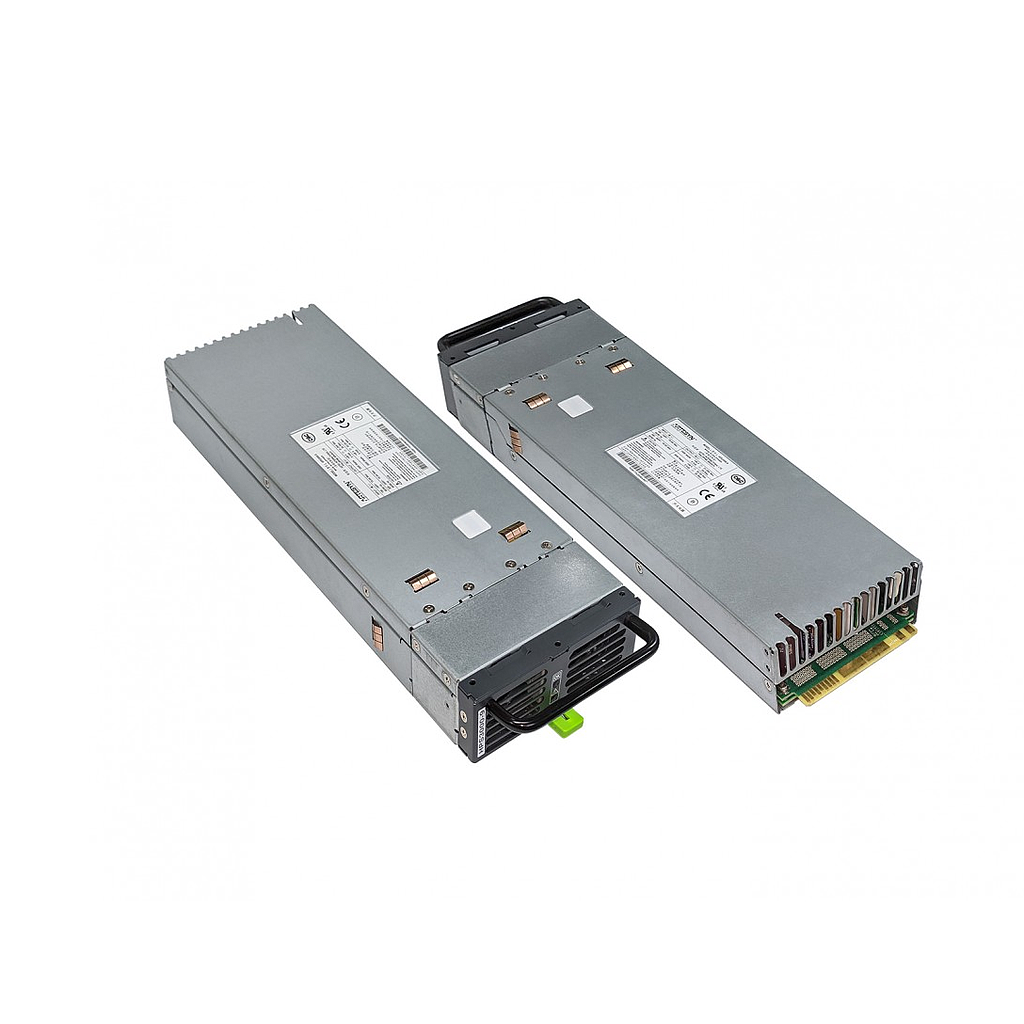

Artesyn HPS3000-9-001 前端电源 (48V; 62A; 3000W)

Input range (operating): 180 - 264 Vac; 90 - 140 Vac

Nominal input: 200 Vac; 110 Vac. Input through Card Edge Connection on same end as DC output

Frequency: 47 to 63 Hz

Input current: 19 A max input current

Output rating:

48 V @ 62.0 A/ 5 Vsb @ 3.0 A: 180 - 264 Vac

48 V @ 29.4 A/ 5 Vsb @ 3.0 A: 90 - 140 Vac

Set point: 48 V

Total regulation range: 48 V ± 5%/ 5 Vsb ± 4%. Line/load/transient when measured at output connection

Rated load: 3000 W maximum @ 200 Vac Input. 1500 W maximum @ 110 Vac Input. No derating over operating temp range

Minimum load: 48 V @ 0.0 A/ 5 Vsb @ 0.0 A. No loss of regulation

Operating temperature: - 10 ° to +40 °C

Storage temperature: - 40 ° to +85 °C

Cooling: External fans with Fan Fail and Fan Speed control

Operating relative humidity: 5% to 95% non-condensing
