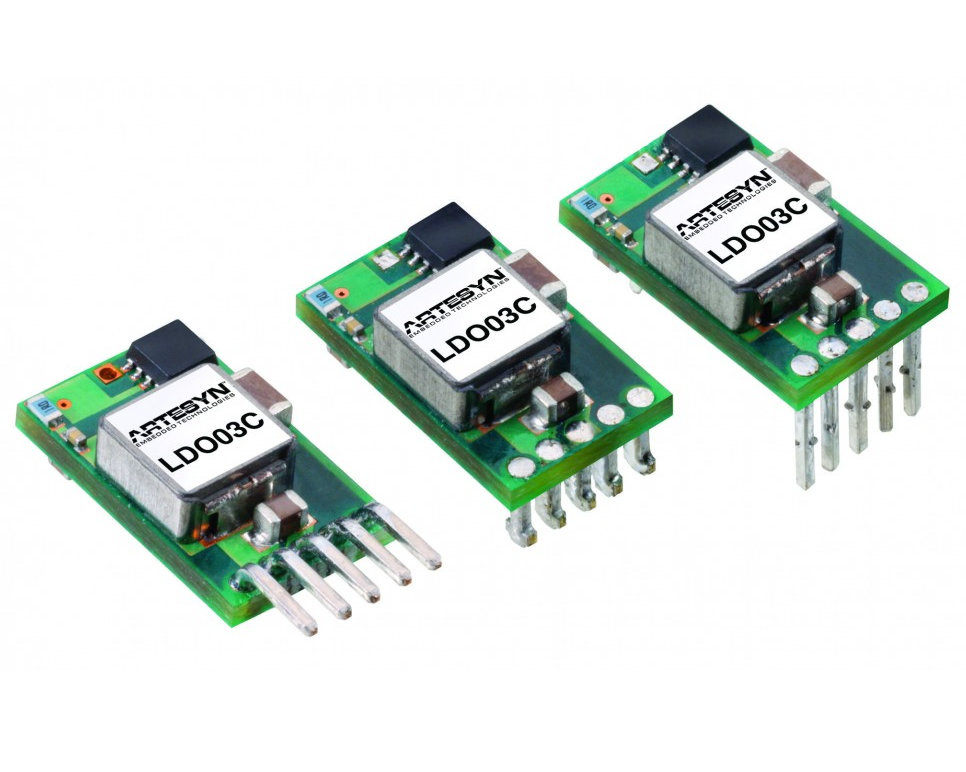

Artesyn LDO03C-005W05-SJ 15 Watt Non-Isolated DC-DC Converter (3A; 5.1V; 15W)

Input range: 3 - 13.8 Vdc

Input current (max.): 3 A @ lo max

Output Voltage: 0.59 - 5.1 V

Output Current (Min.): 0 A

Output Current (Max.): 3 A

Efficiency (Typical): 90 %

Regulation Line: ±0.2%

Regulation Load: ±0.5%

Output setpoint accuracy: ±1.0%

Thermal performance:

Operating ambient -40 °C to +85 °C

Non-operating ambient -40 °C to +125 °C

Weight: 1.7 g (0.06 oz.)
