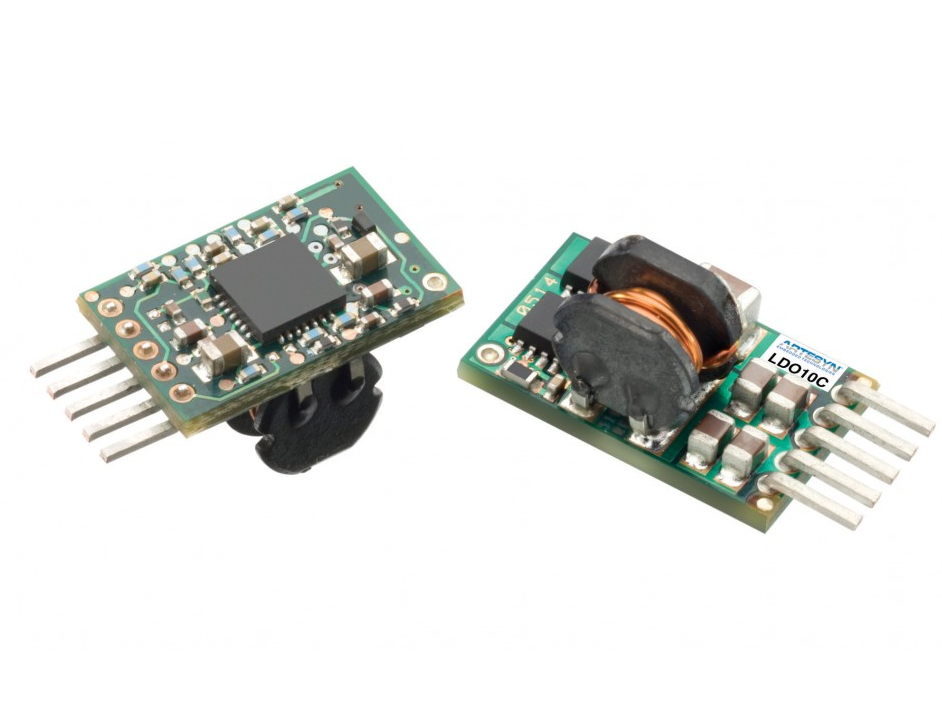

Artesyn LDO10C-005W05-HJ 50 Watt Non-Isolated DC-DC Converter (5.1V; 10A; 50W)

Input voltage range: 3 - 13.8 Vdc

Output setpoint accuracy: ±1.0%

Ripple and noise: 20 mV

Output Power (Max.): 50 W

Output Voltage: 0.59 - 5.1 V

Output Current (Min.): 0 A

Output Current (Max.): 10 A

Efficiency (Typical): 94%

Line Regulation: ±0.2%

Load Regulation: ±0.5%

Operating ambient temperature: -40 °C to +85 °C

Non-operating ambient temperature: -40 °C to +125 °C

Weight: 1.899 g (0.067 oz.)
