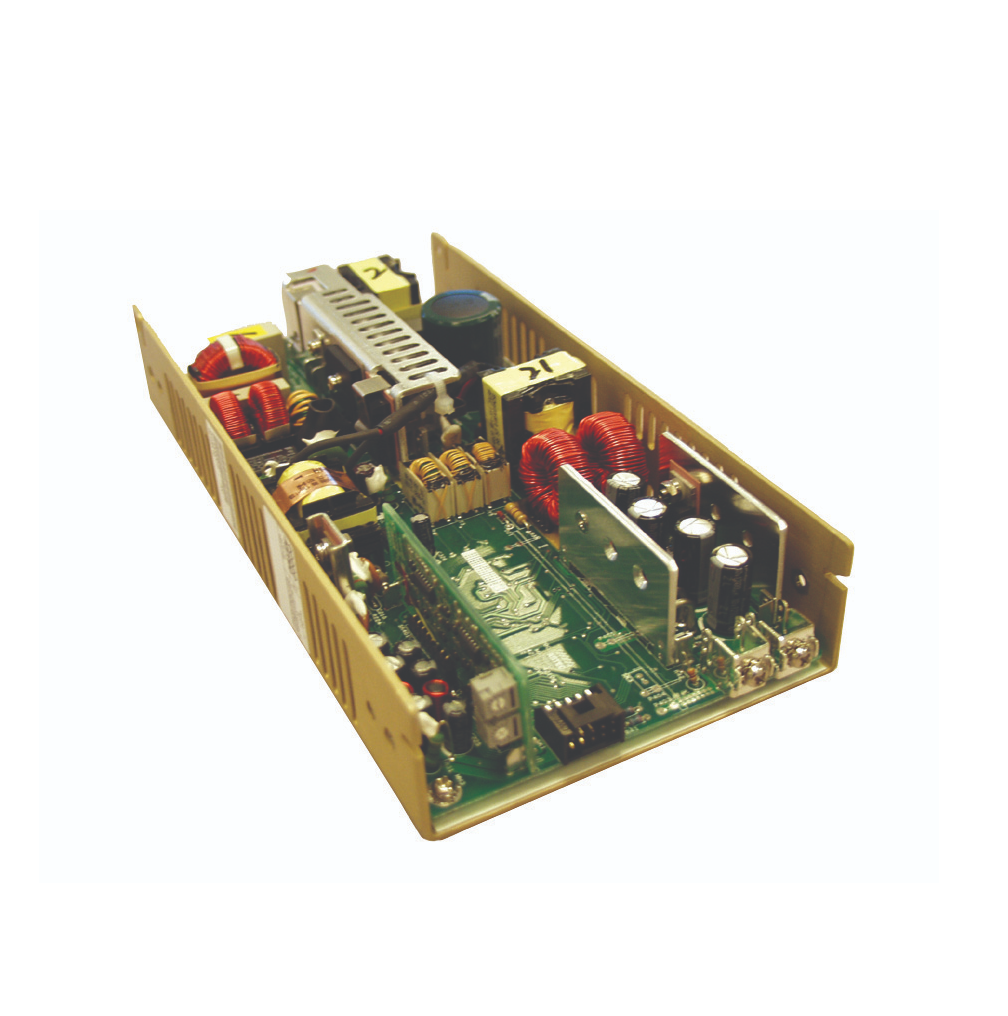

Artesyn LPS175 开放式机架低功率AC-DC电源 (24V; 175W)

Input

Input range: 85 - 264 Vac; 120-300 Vdc

Frequency: 47 - 63 Hz

Inrush current: 38 A max, cold start @ 25°C

Output

Maximum power: 110 W convection (75 W with cover); 175 W with 30 CFM forced air (130 W with cover)

Adjustment range: 2:1 wide ratio minimum

Standby outputs: 5 V @ 2 A regulated ±5%

Hold-up time: 20 ms @175 W load at nominal line

Aux output: 12 V @ 1 A -5 %, +10%

Environmental Specifications

Operating temperature: 0° to 50 °C ambient; derate each output at 2.5% per degree from 50° to 70 °C

Low temperature: start -20 °C

Storage temperature: -40° to 85 °C

Humidity: Operating; non-condensing 5% to 95%

Functions: EMI filter; Safety ground leakage current; Overload protection; Overvoltage protection; Remote sense

Ordering Information

Output Voltage: 24 V (24 - 54 V)

Minimum Load: 0 A

Maximum Load with Convection Cooling: 4.5 A

Maximum Load with 30CFM Forced Air: 7.5 A

Peak Load: 8.2 A

Regulation: ±2%

Ripple P/P(PARD): <1%


Details

Datasheet
