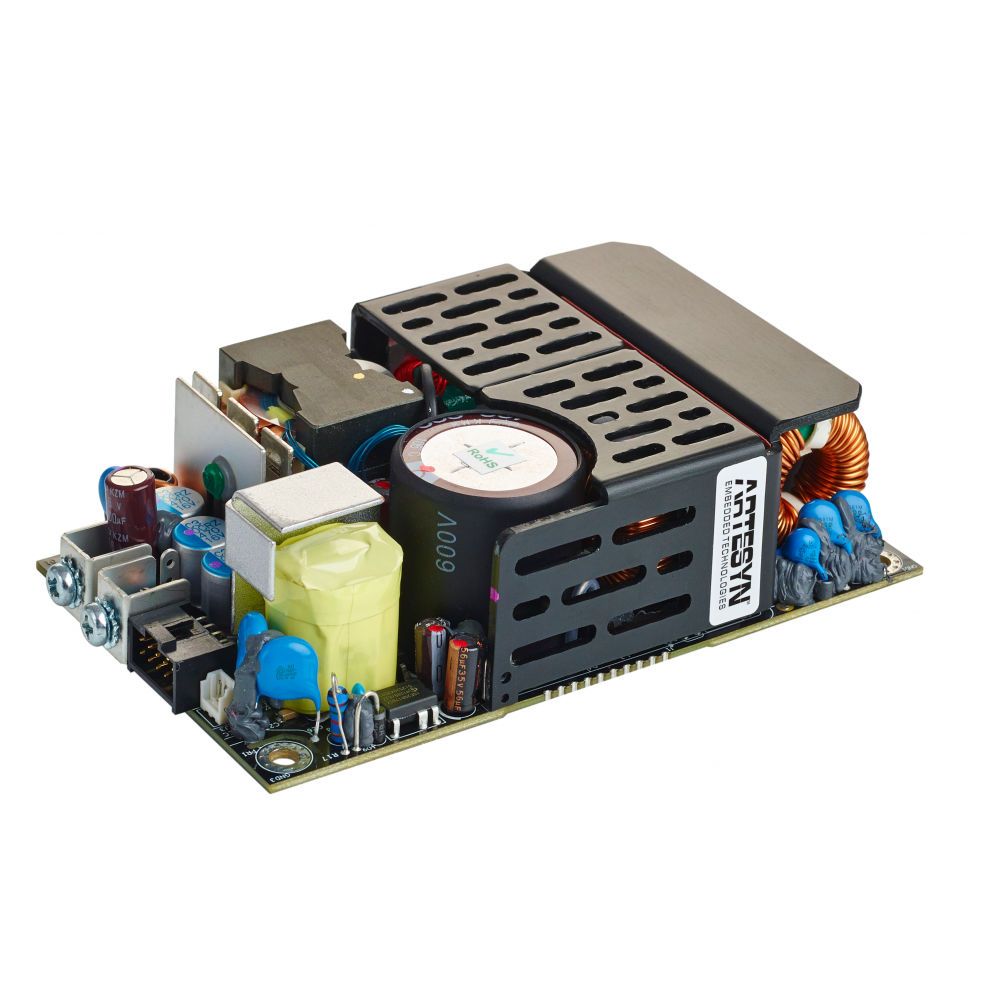

Artesyn LPS368-M Open Frame, Low Power AC-DC Power Supply (48V; 200-360W)

Input

Input range: 90 - 264 Vac; 120 - 300 Vdc

Frequency: 47 - 63 Hz

Inrush current: 50 A max., cold start @ 25°C

Output

Maximum power: 200 - 240 W (see de-rating) for convection, 360 W with 400 LFM of forced air

Adjustment range: 12 V and 24 V models, -0%, +15%; 15 V and 48 V models, -5%, +10%; 36 V model, -15%, +0%

Standby output: 5 V @ 1A convection, 2 A with forced air

Hold-up time: 16 ms @ 250 W load, 120 Vac input

Environmental Specifications

Operating temperature:

-20 °C to 50 °C ambient, derate each output as 2.5% per degree from 50 °C to 70 °C;

-40 °C startup if Standby output ≤ 1A (any valid load on main output);

-30 °C startup if Standby output > 1A (any valid load on main output)

Storage temperature: -40 °C to +85 °C

Humidity: Operating; non-condensing 10% to 95% RH

Function: EMI/RFI, power factor, safety ground leakage curent, fan output, overload protection, overvoltage protection; power failure, remote sense

Ordering Information:

Output Voltage: 48 V

Minimum Load: 0 V

Maximum Load with Convection Cooling: 5 A

Maximum Load with  Forced Air: 7.5 A

Peak Load: 9.75 A

Regulation: ± 2%

Ripple P/P (PARD): 480 mV
