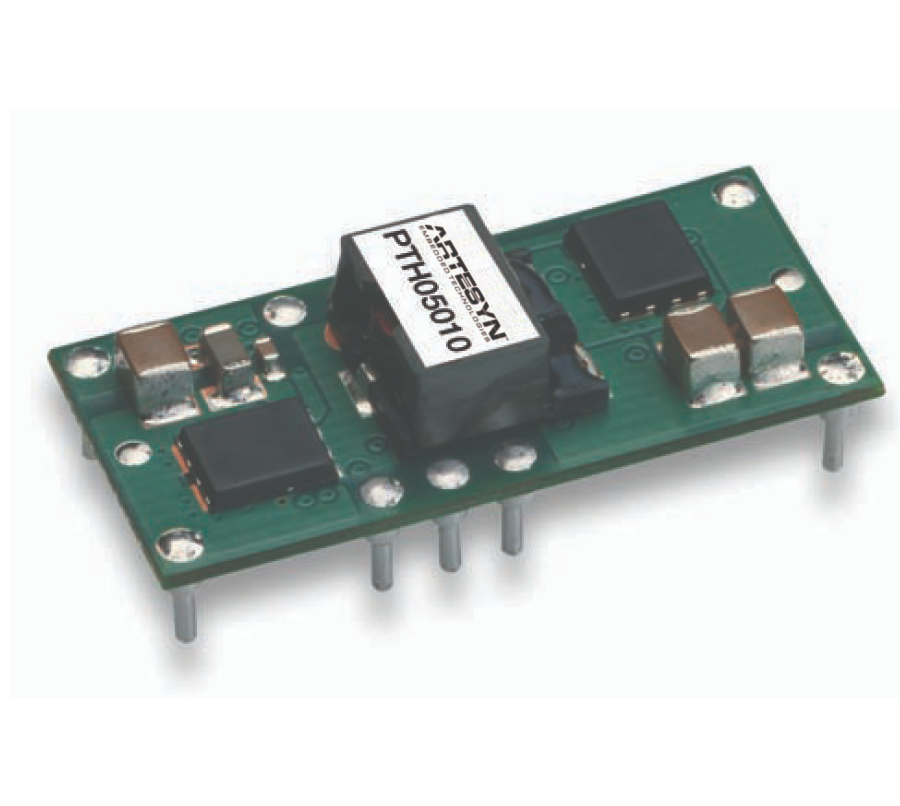

Artesyn PTH05010 54 Watt Non-Isolated DC-DC Converter (3.6V; 15A; 54W)

Input voltage range: 4.5 - 5.5 Vdc

Output Power (Max.): 54 W

Output Voltage: 0.8 - 3.6 V

Output Current (Min.): 0 A

Output Current (Max.): 15 A

Setpoint accuracy: ±2.0% Vo

Line regulation: ±10 mV

Load regulation: ±12 mV

Ripple and noise: 30 mV typical

Efficiency (Typical): 95%

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Dimensions (L x W x H): 34.80 x 15.75 x 9.00 mm

Weight: 5 g (0.18 oz)
