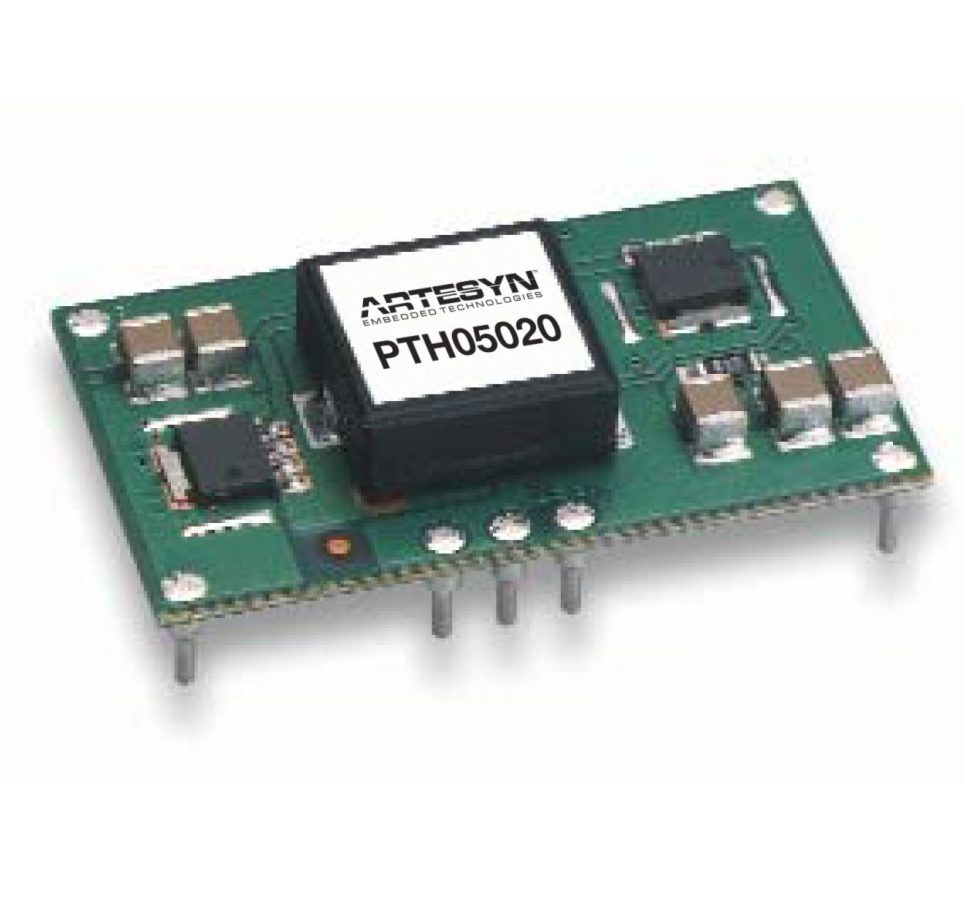

Artesyn PTH05020 79.2 Watt Non-Isolated DC-DC Converter (3.6V; 22A; 79.2W)

Input voltage range: 4.5 - 5.5 Vdc

Output Setpoint accuracy: ±2.0% Vo

Output Power (Max.): 79.2 W

Output Voltage: 0.8 - 3.6 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 22 A

Line regulation: ±5 mV typical

Load regulation: ±5 mV typical

Ripple and noise (20 MHz bandwidth): 20 mV pk-pk

Efficiency: 96%

Dimensions (L x W x H): 37.97 x 22.10 x 9.00 mm

Weight: 7 g (0.25 oz)

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C
