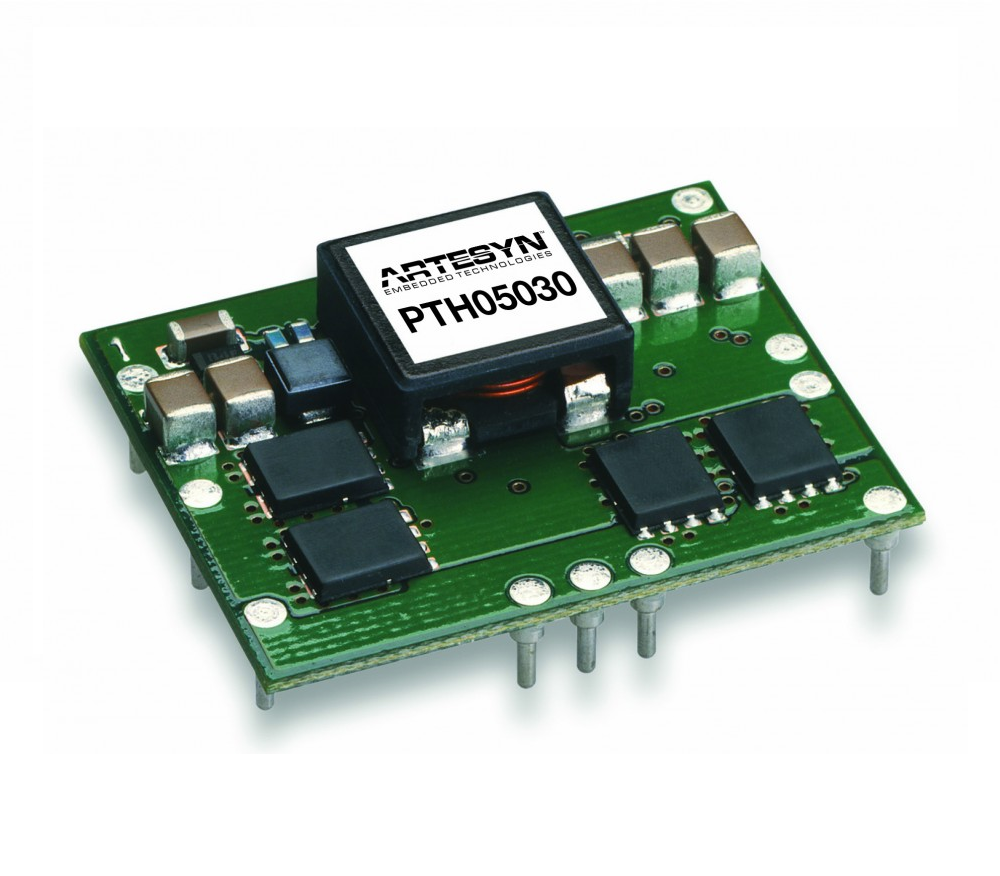

Artesyn PTH05030 108 Watt Non-Isolated DC-DC Converter (3.6V: 30A; 108W)

Input voltage range: 4.5 - 5.5 Vdc

Output Setpoint accuracy: ±2.0% Vo

Output Power (Max.): 108 W

Output Voltage: 0.8 - 3.6 V

Output Current (Min.): 0 A

Output Current (Max.): 30 A

Line regulation: ±10 mV typical

Load regulation: ±12 mV typical

Ripple and noise (20 MHz bandwidth): 40 mV pk-pk

Efficiency: 94%

Dimensions (L x W x H): 34.80 x 28.45 x 9.00 mm

Weight: 10 g (0.35 oz)

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Detail

Datasheet
