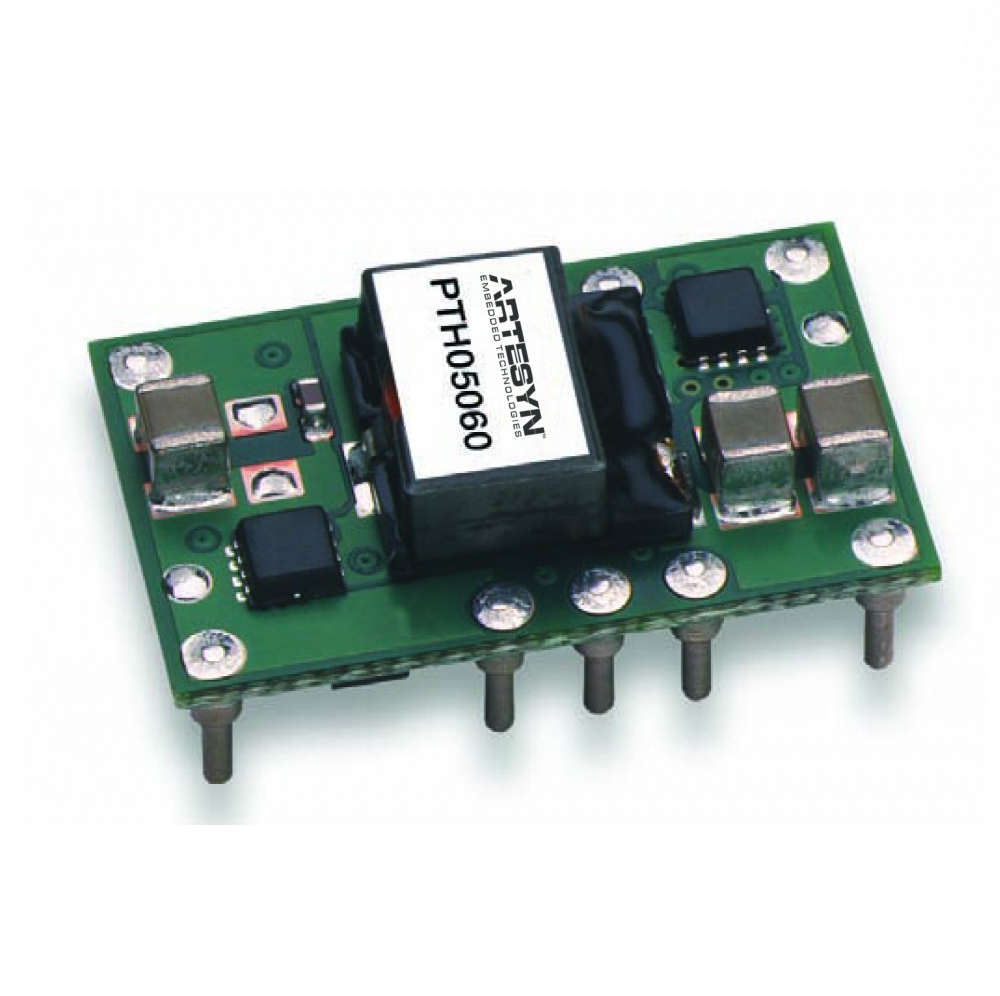

Artesyn PTH05060 36 Watt Non-Isolated DC-DC Converter (3.6V; 10A; 36W)

Input voltage range: 4.5 - 5.5 Vdc

Output Power (Max.): 36 W

Output Voltage: 0.8 - 3.6 V

Output Current (Min.): 0 A

Output Current (Max.): 10 A

Setpoint accuracy: ±2.0% Vo

Line regulation: ±10 mV

Load regulation: ±12 mV

Ripple and noise: 25 mV pk-pk

Efficiency (Typical): 94%

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Dimensions (L x W x H): 25.27 x 15.75 x 9.00 mm

Weight: 3.98 g (0.13 oz)
