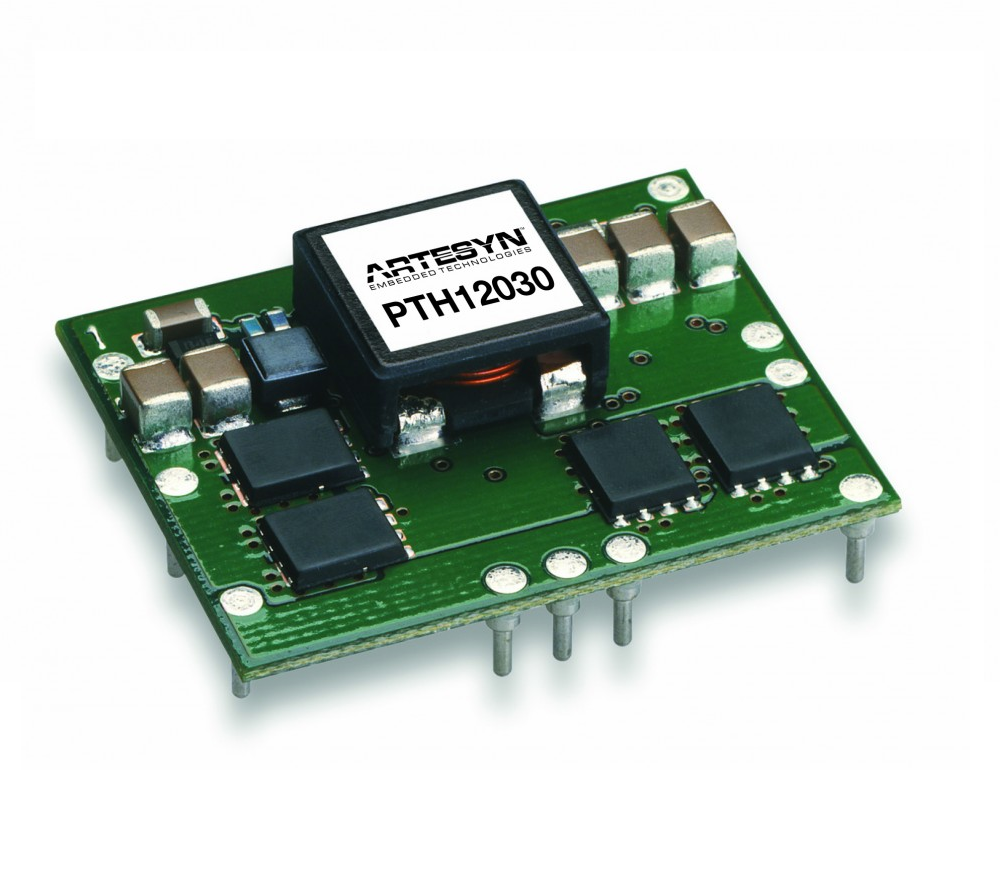

Artesyn PTH12030W 143 Watt 非隔离DC-DC转换器 (5.5V; 26A; 143W)

Input voltage range: 10.8 - 13.2 Vdc

Output Setpoint accuracy: ±2.0% Vo

Output Power (Max.): 143 W

Output Voltage: 1.2 - 5.5 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 26 A

Line regulation: ±5 mV typical

Load regulation: ±5 mV typical

Ripple and noise (20 MHz bandwidth): 25 mV pk-pk

Efficiency: 94.5%

Dimensions (L x W x H): 34.80 x 28.45 x 9.00 mm

Weight: 7 g (0.25 oz)

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C
