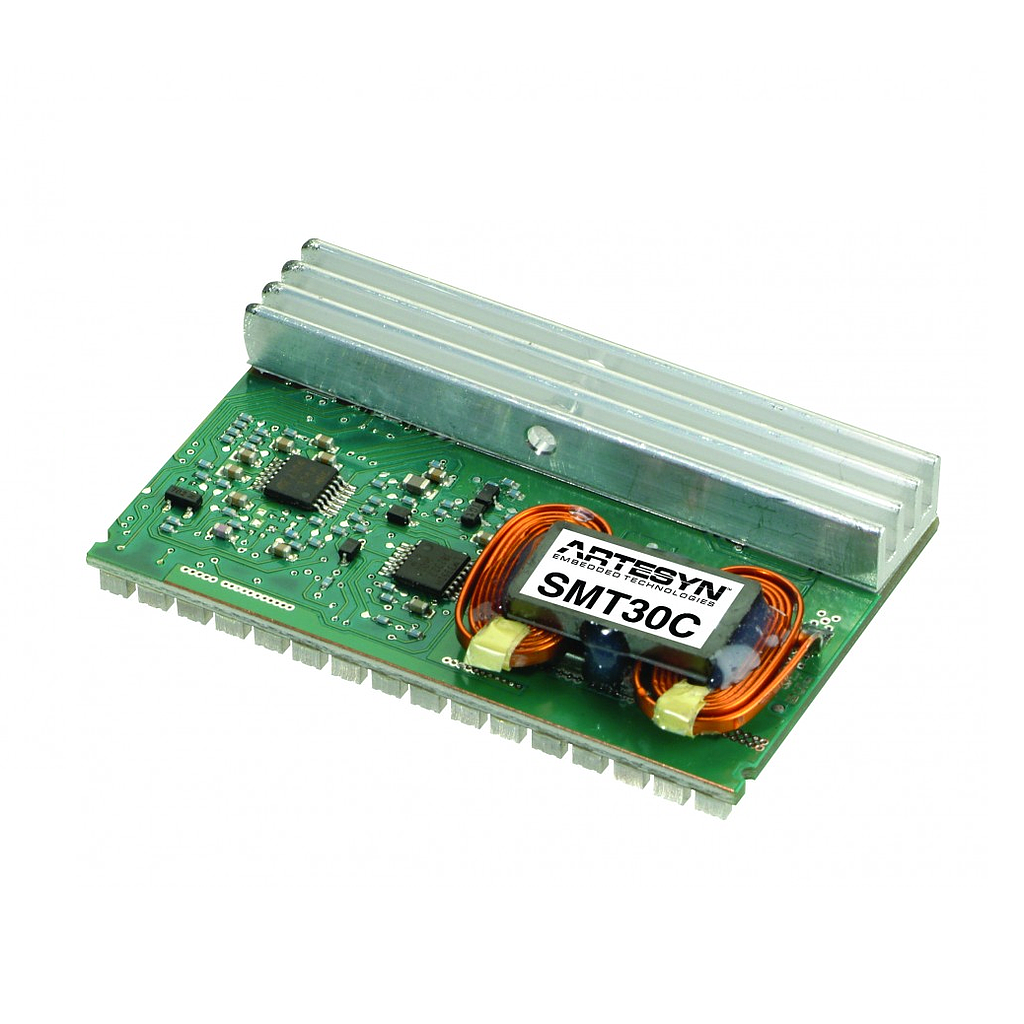

Artesyn SMT30C-12SADJJ 150 Watt Non-Isolated DC-DC Converter (5V; 30A; 150W)

Input voltage range: 10.2 - 13.8 Vdc

Output Power (Max.): 150 W

Output Voltage Adjustability: 0.9 - 5.0 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 30 A

Efficiency (Typical): 91%

Ripple and noise (5 Hz to 20 MHz): 50 mV pk-pk; 14 mV rms

Regulation Line: ±0.2%

Regulation Load: ±1.0%

Output setpoint accuracy: ±3.0%

Weight: 28.3 g (1 oz)

Operating ambient temperature: 0 °C to +80 °C

Non-operating temperature: -40 °C to +125 °C
