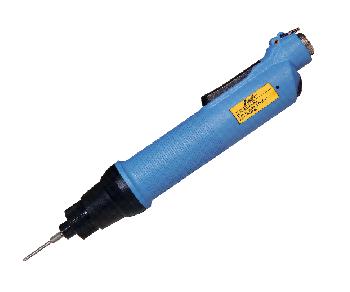

ASA ASA-3000M 电动螺丝刀 (0.5-5.0 kgf-cm, 1/4''Hex shank)

Power source: 30VDC

Torque range (kgf-cm/lbf-in): 0.5-5.0/0.43-4.3

No load speed rpm: 550

Torque setting: Stepless

Available screw:

  Machine screw: 1.0-2.3/0.04-0.09 mm/in

  Tapping Screw: 1.0-2.6/0.04-0.10 mm/in

Weight g/lb: 310/0.68 (Φ4.0); 370/0.8 (1.4" Hex shank)

Length mm/in: 208/8.2 (Φ4.0); 228/9.0 (Φ5, 1/4" Hex shank)

Available bit shank: Φ4.0, 1/4" Hex shank)

Power comsumption W: 30

Available power supply: APS-301B

Clutch impact: Just on time when torque up
