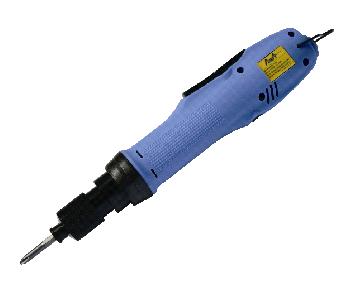

ASA ASA-8500 电动螺丝刀 (12.0-40.0kgf-cm, 1/4", Level Start)

Power source: 30VDC

Torque range (kgf-cm/lbf-in): 12.0-40.0 / 10.4-34.7

Torque accuracy: ±3%

No load speed rpm: 700

Torque setting: Stepless

Available screw:

  Machine screw: 3.5-5.5 / 0.14-0.22 mm/in

  Tapping Screw: 3.0-4.5 / 0.12-0.18 mm/in

Weight g/lb: 670 / 1.47 , 740/1.6 (PS)

Length mm/in: 265 / 10.4, 269/10.6 (PS)

Available bit shank: 5 Φ/ 5mm Hex shank or 1/4" Hex shank

Power comsumption W: 60

Available power supply: APS-30U,APS-70S(6P)

Clutch impact: Just on time when torque up
