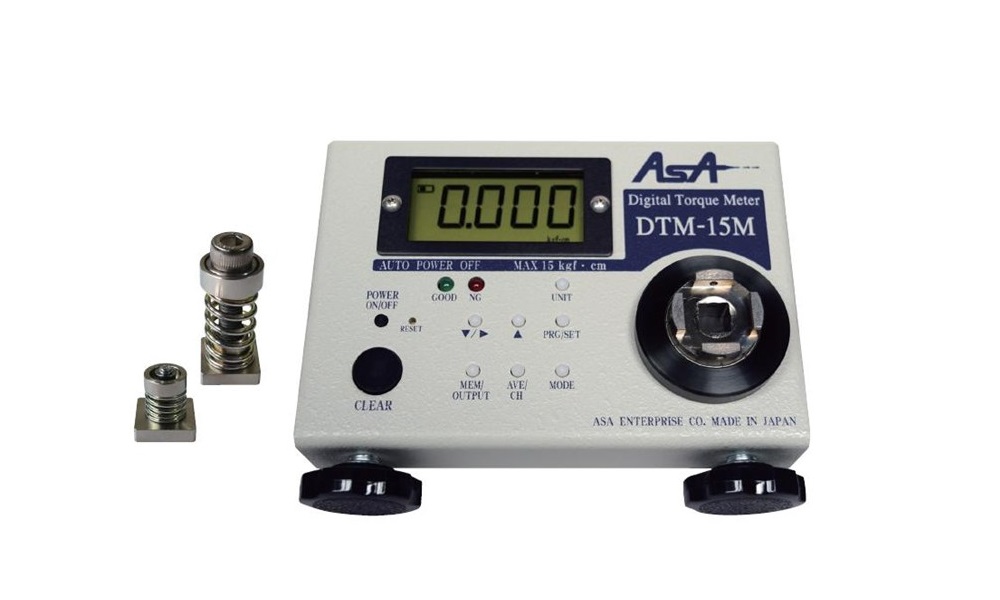

ASA DTM-15M 扭力测试机 (0.040~15.00 kgf-cm)

Measuring range:

4.0~1500 N-m

0.040~15.00 kgf-cm

0.040~13.50 lbf-in

Accuracy: ±0.5%

Display: The 3.5 figures digital display of LCD

Measuring direction: CW-CCW (right and left)

Measuring mode: P-P Peak; T-R Track; P-D Peak down; C (Real-time Output)

High and low limits judging function: High and low are measurement within the limits, and can be set up

Real-time Output: Load torque value are measurement within the limits, and can be set up

The Maximum, the minimum, and the average value display: It displays the maximun, the minimum, average value, the number of data to 30 data

Automatic Cleartime: In 0.1-3.0 seconds

One-touch zero: By pushing a clear button, zero adjustment can be performed by one-touch

Data memory: Measured value-800 data statistics data, such as an average 1- channels

Data output: ASCII format (baud rate 19200)

Power supply: Ni-Cd changeable battery 1.2V x 5 cells 700mAh / 300 time or more change life

Auto power off: 10 minutes no use, automatically switch off

Charging time: From empty - less than 3 hours

Continunous working time: 12 hours

Socket size: 20 mm/9.5mm

Weight: Abbreviation 1 kg

Outside dimension: 155(W) x 125(D) x 55(H)

Accessories (one piece each):

 Measurement joint ASJ-50VASJ-10K (44 bit HEX Opposite side 6mm)

USB connector cable, drive on CD-ROM (for window)

transfer bit 4

Exclusive case

AC/DC adaptor (Choose AC adaptor out of 120V and 230V)

Result of calibration, certification on calibration, traceability system figure
