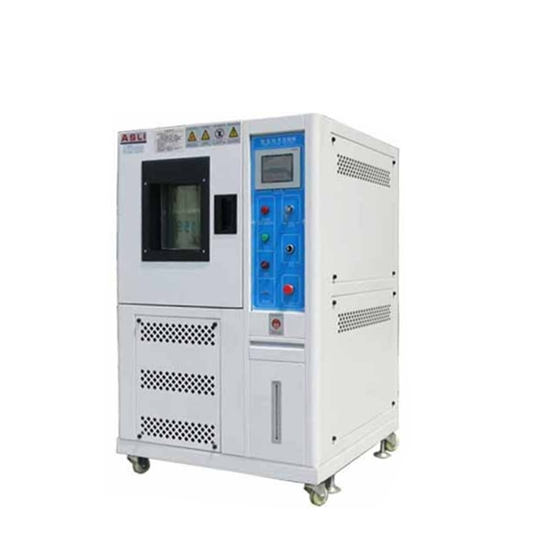

ASLI F-TH-150-D ESS 温度和气候试验箱 (-40~+150℃, 20%~98%R.H)
制造商: ASLI Model: F-TH-150-D - 报价要求
- 联系
Internal Dimension | W500xH600xD500 (mm) |
Internal Dimension | W1100xH1750xD1600 (mm) |
Range of Fast Temperature Change | Temperature Range: -40~+150℃; Range of Fast Temperature Change:-45~+85℃; Max. temperature rising/falling speed is 3~20 ℃/min when the whole process with linear control .. |
Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier) |
Analytic Accuracy/Distribution Uniformity of Temperature and Humidity | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. |
Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. |
Temperature Rising/ Falling Speed Rate | The Temperature Rising/Falling Speed Rate with linear control : 3~15℃/min, adjustable The Temperature Rising/Falling Speed Rate non-linear control : 3~30℃/min, adjustable |
Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
Cooling System | Water cooling/single segment compressor |
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over temperature protection switch,fuses, fault warning system, water short storage warning protection |
Optional Accessories | Inner door with operation hole(Optional) , Water Purifier, Dehumidifier |
Compressor | French Tecumseh Brand, Germany Bizer Brand |
Power | AC380V 3∮ 5 lines, 50/60HZ |
Approx. Weight(Kg) | 450 |
