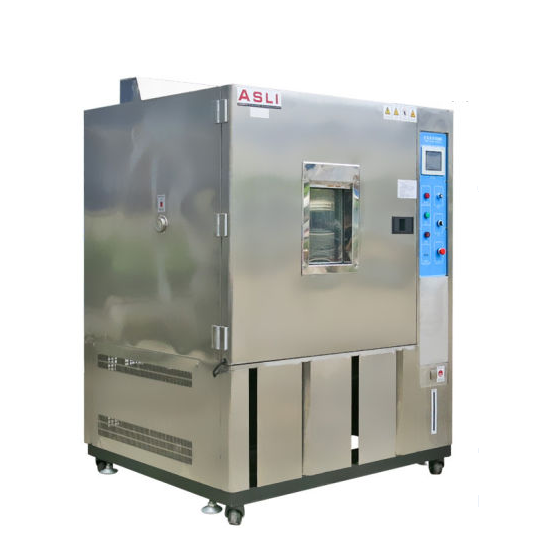

ASLI TH-150-D 程式恒温恒湿试验箱

Internal Dimension

 W500xH600xD500(mm)

Internal Dimension

 W1050xH1750xD1050(mm)

Temperature Range

 Low Temperature: D:-40℃(Temperature according to customer’s requirement)
High temperature: 150℃

Humidity Range

 20%~98% R.H.

 Analytic Accuracy/
Distribution uniformity of

temperature and humidity

 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.

Control Accuracy of
Temperature and Humidity

 ±0.5℃; ±2.5% R.H.

Temperature Rising/

Falling Speed Rate

 Temperature rising approx.  0.1~3.0℃/min / temperature falling approx.  0.1~1.5℃/min;
 ( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)

Material

 Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine,

 ethyl acetum foam insulation materials

 Cooling System

 Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃)

 Protection Devices

Fuse-free switch, overloading protection switch  for compressor,

high and low voltage coolant protection switch, over-humidity and

over-temperature protection switch, fuses, fault warning system, water short storage warning protection

 Compressor

 French Tecumseh Brand,Germany Bizer Brand

 Power

 AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ

 Approx. Weight (Kg)

 300

 Optional Accessories

 Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
