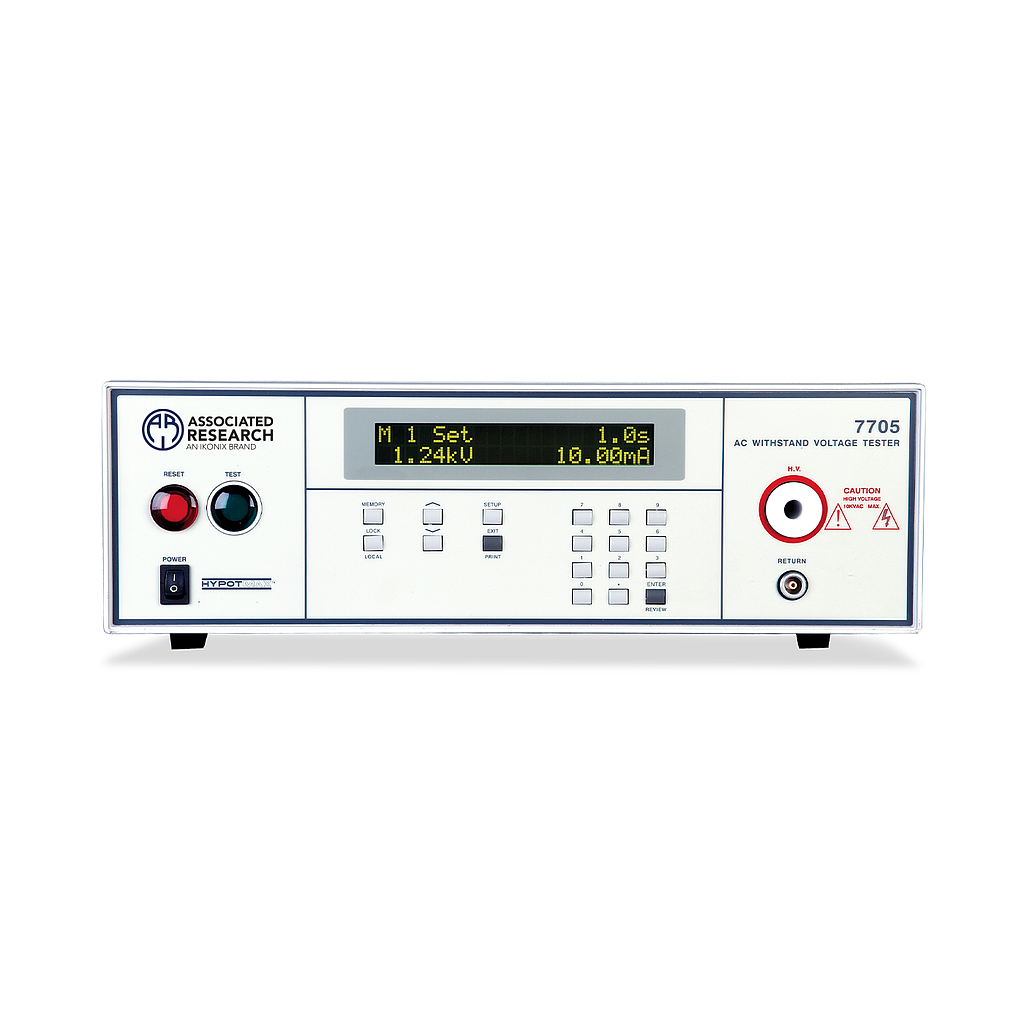

Associated Research 7705 高压耐压测试仪(10kVAC,20mAAC)

Voltage 115/230 VAC ± 10%, user selectable
Model 3145 Only: 100-120 / 200-240 VAC ± 10%, auto-detection
Frequency 50/60 Hz ± 5%
DIELECTRIC WITHSTAND TEST MODE
Output Rating 7705:10 kV @ 20 mAAC
7710: 12 kV @ 10 mADC
7715: 20 kV @ 10 mAAC
7720: 20 kV @ 5 mADC
HI-Limit and
LO-Limit
Range 1:0.0 – 9.999 mA
Resolution:0.001 mA
Range 2:10.00 – 20.00 mA
Resolution:0.01 mA
Voltage Display
Range:0.00 – 10.00 kV Full scale
Accuracy:± (2% of reading + 20 V
Output Frequency: 50/60 Hz, User Selection
± (1% of output + 5 V) from Regulation
No load to full load
Memory 50 memories w/ 8 steps per memory
Mechanical Tilt-up front feet
Interface Standard: USB, RS-232
Optional: GPIB
Dimensions (W x H x D): (430 x 133 x 400 mm)
Weight 7705/7710:61.65 lbs (28 kg)
7710/7720:48.9 lbs (22 kg)
