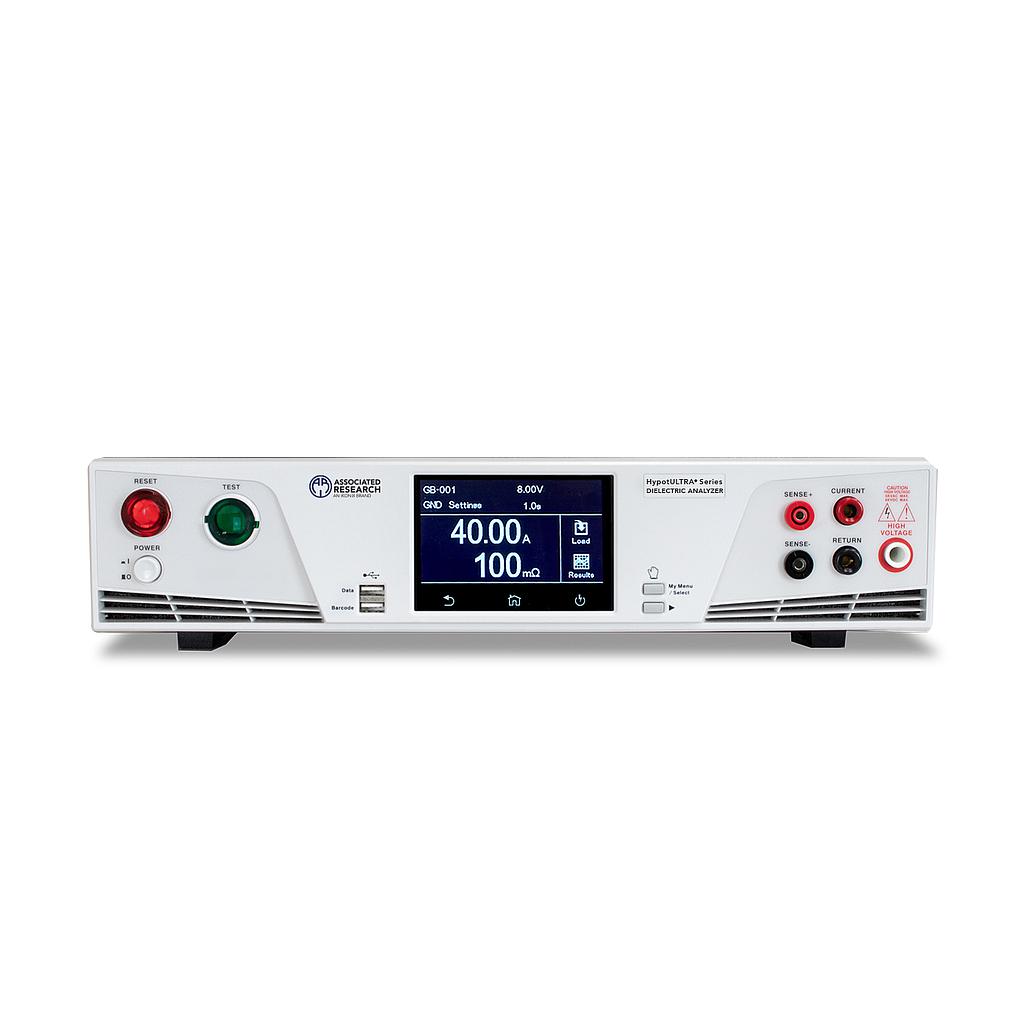

Associated Research (ARI) 7804 电气安全测试仪 (5 kV @ 40 mA AC, 6 kV @ 20 mA DC, 5 years warranty)

AC Hipot

Voltage Output = 0-5000VAC

Leakage Current Limits = 0.000mA-40.0mA

Output Frequency = 50/60HzDC Hipot

Voltage Output = 0-6000VDC

Leakage Current Limits =0.0000-20,000µA

DC Ripple ≤ 4% Ripple RMS at 6 KVDC @ 20mA, Resistive LoadGround Bond

AC Output Current = 1.00A-40.00A

AC Output Voltage = 3.00-8.00 V

Resistance Range = 0-600mΩ

Continuity

DC Output Current = 0.001A-1ADC

Resistance Range = 0.000-10,000ΩInsulation Resistance

Voltage Output = 10-6000VDC

Resistance Range = 0.1MΩ-50.0GΩ
