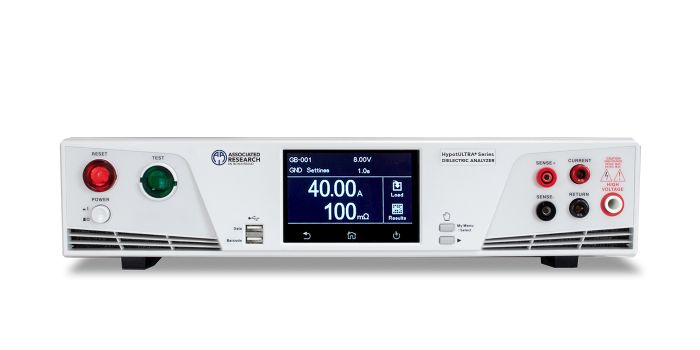

Associated Research (ARI) 7854 电气安全测试仪 (5000VAC, 6000VDC)
制造商: Associated Research (ARI) Model: 7854 保障: 12 Month - 联系
AC Hipot
Voltage Output = 0-5000VAC
Leakage Current Limits = 0.000-100.0mA
Output Frequency = 50/60HzDC Hipot
Voltage Output = 0-6000VDC
Leakage Current Limits = 0.0000-20,000µA
DC Ripple ≤ 4% Ripple RMS at 6 KVDC @ 20mA, Resistive Load
Ground Bond
AC Output Current = 1.00A-40.00A
AC Output Voltage = 3.00-8.00 V
Resistance Range = 0-600mΩ
Continuity
DC Output Current = 0.001A-1ADC
Resistance Range = 0.000-10,000ΩInsulation Resistance
Voltage Output = 10-6000VDC
Resistance Range = 0.1MΩ-50.0GΩ
Details
